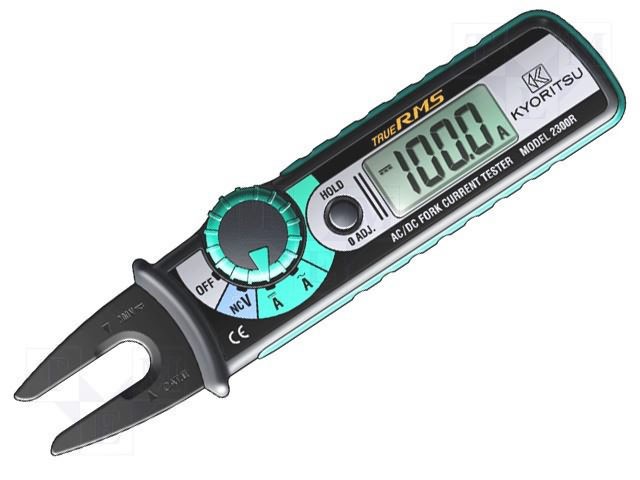

KYORITSU 2300R Clamp Meter (100A AC; ±100A DC; True RMS)

True RMS

Current Measurement:

- Measuring Range: AC A 0 to 100.0A

DC A 0 to ±100.0A

- Accuracy: ±2.0%rdg±5dgt(50/60Hz)

±2.0%rdg±5dgt

Conductor Size: Max Ø10mm

Non Contact Voltage: Detect AC voltage without contacting with socket wire

Dimensions: 161.3(L) × 40.2(W) × 30.3(D)

Crest Factor: 2.5

Weight: 110g (with batteries)

Maximum Digit: 1,049

Safety Standard: IEC 61010-1 CAT.3 300V; Pollution Degree 2

Power Source: R03 (AAA) × 2

Accessories: Instruction Manual, R03 (AAA) × 2, Carrying Case
