KYORITSU 4105A-H Earth Testers (20/200/2000Ω) | EMIN.COM.MM

KYORITSU 4105A-H Earth Testers (20/200/2000Ω)

Name: KYORITSU 4105A-H Earth Testers (20/200/2000Ω)
Brand: KYORITSU
Price: 1807065.22 MMK
Availability: InStock

In Stock: 1 Unit

ManufacturerKYORITSU(View more products from this manufacturer)

Model4105A-H

OriginThailand

Warranty12 months

1,807,065 Kyat

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Hard case
the metering
+Resistance:0 ~20Ω/0 ~200Ω/0 ~2000Ω
+GroundVoltage[50.60Hz]:0 ~200VAC
Accuracy
+Resistance:± 2% rdg± 0.1Ω(20Ωrange)
± 2% rdg±3dgt(200Ω/2000Ωrange)
+Groundvoltage± 1% rdg±::4dgt
Source:R6P(AA) (1.5V)× 6
Size:105 (L)×158 (W)×70 (D)mm
Weight:550gapprox.
Accessories:
+7095A(Earthresistancetestleads) ×1SET
(red-20m,10myellow-, green-5m)
+8032(Auxiliaryearthspikes) ×1SET
+7127A(Simplifiedmeasurementprobe) ×1SET
+R6P(AA)× 6
+Instruction Manual

•	Dust and drip proof.(designed to IEC 529 IP54)
•	In addition to the facility for precision measurement, test leads for simplified two wire measuring system also supplied as standard accessories. (unit can be hung from the neck for simplified measurement)
•	Designed to meet IEC 61010-1 safety standard.
•	Capable of measuring earth voltage.
•	Automatic warning when resistance of auxiliary earth spikes is in excess of tolerance.
•	Small and lightweight. Shock resistant new case material.
•	2mA measuring current permits earth resistance tests without tripping earth leakage current breakers in the circuit under test.

4105A Soft Case Model

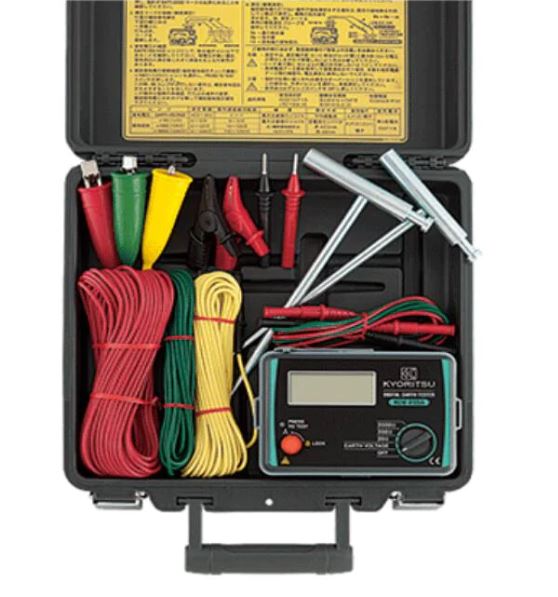

4105A-H Hard Case Model

Measurement
Ranges

Earth Resistance: 0~20Ω/0~200Ω/0~2000Ω
Earth Voltage [50,60Hz]: 0~200V AC

Accuracy

Earth Resistance: ±2%rdg±0.1Ω (20Ωrange)
|±2%rdg±3dgt (200Ω/2000Ωrange)
Earth Voltage: ±1%rdg±4dgt

Overload Protection

Earth Resistance: 280V AC for 10 seconds
across 2 of the 3 terminals
Earth Voltage: 300V AC for 1 minute

Safety Standard

IEC 61010-1 CAT.III 300V Pollution Degree 2, IEC 61557

Applicable Standards

IEC 60529 IP54

Withstand Voltage

3700V AC for 1 minute

Power Source

R6P (AA) (1.5V) × 6

Dimensions

105(L) × 158(W) × 70(D)mm

Weight

550g approx.

Accessories

7095A (Earth resistance test leads) × 1set
(red-20m, yellow-10m, green-5m)
8032 (Auxiliary earth spikes) × 1set
7127A (Simplified measurement probe) × 1set
R6P (AA) × 6
Neck strap
Instruction Manual
