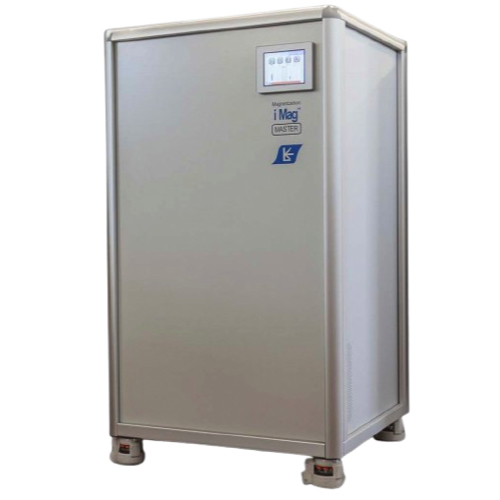

Laboratorio Elettrofisico i Mag™ Master Magnetizer (Up to 800 V / 3500V, 15000 µF / 1100 µF ~ 60000 µF / 4400 µF)

Voltage range: Up to 800 V / Up to 3500 V

Capacitance: 15000 µF / 1100 µF, 30000 µF / 2200 µF, 45000 µF / 3300 µF, 60000 µF / 4400 µF

Voltage resolution: 1 V

Accuracy: 5%

Minimum cycle time (3500 V): 1100 µF: 5 sec, 2200 µF: 10 sec, 3300 µF: 13 sec, 4400 µF: 16 sec

Maximum current: Up to 30 kA

Power supply: 400 V - 32 A

Input/Output interface: 24 VDC / RS-232 / PROFINET®

Remote service (optional): LAN (Ethernet) or Wi-Fi

Quick connectors: Fast connectors up to two coils

Dimensions: L 830 x W 750 x H 1320 mm - L 32.6 x W 29.5 x H 51.9 inches

Weight: 418 kg - 921 lb

Colors: Natural anodized aluminum frame and panels

Current peak detector: Embedded

Touch screen: 5” colors

DATASHEET

APPLICATIONS

Magnetization to saturation for all types of magnetic assemblies

Demagnetization/treating

Knock down

Electric motors

Speakers

Clutches

Stickers

Single magnets

Sensor disks

Actuators

Relays

RCDS
