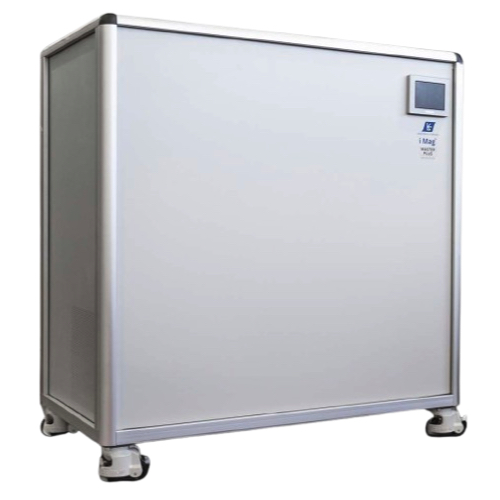

Laboratorio Elettrofisico i Mag™ Master Plus Magnetizer (Up to 3500 V, 5500 µF~ 8800 µF)

Voltage range: Up to 3500 V

Capacitance: 5500 µF, 6600 µF, 7700 µF, 8800 µF

Voltage resolution: 1 V

Accuracy: 5%

Minimum cycle time: 30 sec

Maximum current: Up to 30 kA

Power supply: 400 V - 32 A

Input/Output interface: 24 VDC / RS-232 / PROFINET

Remote service (optional): LAN (Ethernet) or Wi-Fi

Quick connectors: Fast connectors up to two coils

Dimensions: L 1250 x W 750 x H 1350 mm - L 49” x W 30“ x H 53”

Weight: 600 kg - 1323 lb

Colors: Aluminum frame, anodized panel

Current peak detector: Embedded

Touch screen: 5” colors

Datasheet
