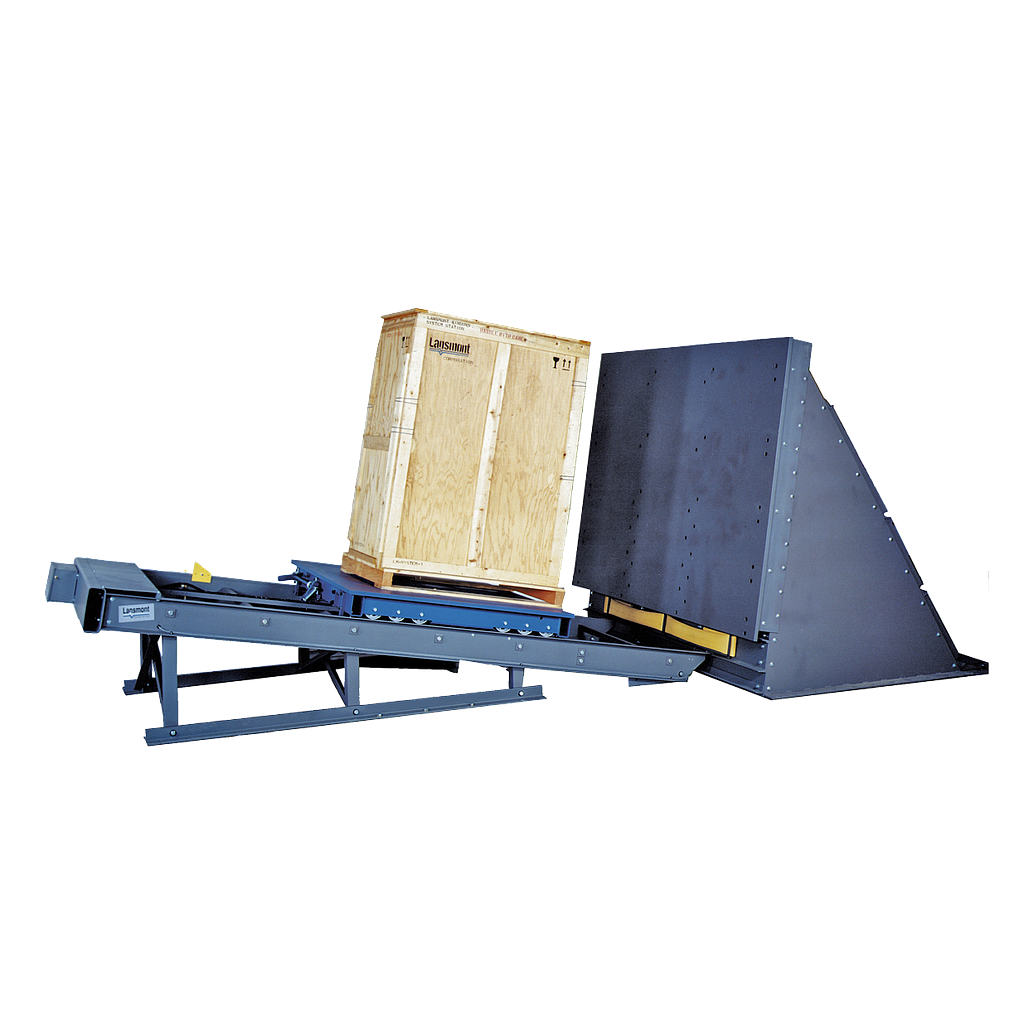

Lansmont IT 152-4K Inclined Impact Tester (1814 kg)

Carriage Size (L x W) : 60 x 60 in. (152 x 152 cm)

Backstop Size (W x H):  84 x 76 in. (213 x 193 cm)

Velocity:  7.3 ft./sec. (2.2 m/sec.)

Payload Capacity : 4000 lb. (1814 kg)

SPECIFICATIONS:

UTILITIES:  152-4K

Power -:

Standard voltages: : 208-230 VAC ; 1 phase; 50-60 Hz; 25 amps

Plant air: : 80 psi (5.6 kg/cm2)

PHYSICAL:

Table size:  60 in. (152 cm) square

Backstop dimensions : 84 x 76 in. tall (213 x 193 cm tall)

Velocity:  7.3 ft./sec. (2.2 m/sec)

Payload capacity:  4000 lbs. (1814 kg)

MACHINE ENVELOPE (standard machine):

Height:  8 ft. (2.4 m)

Width: 8 ft. (2.4 m)

Length: 20 ft. (6.1 m)
