Specifications
Flow range: 0.006-2900 mL/min
Speed range: 0.1-600 rpm
Speed resolution: 0.1 rpm
Speed accuracy: 0.2%
Power supply: AC 100-240V, 50Hz/60Hz
Power consumption: < 60W
External logic level control signal: 5V, 12V (standard), 24V (optional)
External analog control signal: 0-5V (standard), 0-10v, 4-20mA (optional)
Communication interface: RS485 MODBUS
Ambient temperature: 0~40°C
Relative humidity: < 80%
IP grade: IP31
Dimensions (L x W x H): 226 x 150 x 238 mm (8.90 x 5.91 x 9.37 inch)
Weight: 5.5 kg (12.1 lbs)
| Drive type | Pump heads | Ch | Tubing size | Flow rate per channel (mL/min) |

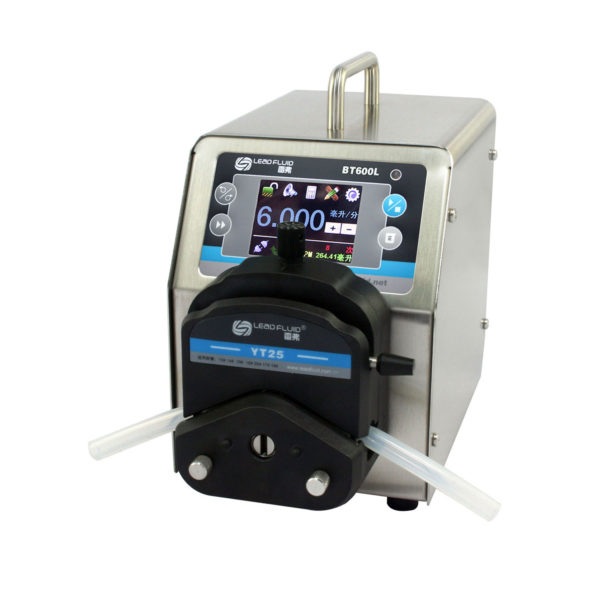

| BT600L (304SS case) | YZ15 | 1 | 13# 14# 16# 19# 25# 17# | 0.006-1700 |
| YZ25 | 1 | 15# 24# | 0.16-1700 | |
| 2 x YZ15 | 2 | 13# 14# 16# 19# 25# 17# | 0.06-1700 | |
| 2 x YZ25 | 2 | 15# 24# | 0.16-1700 | |
| YT15 | 1 | 13# 14# 16# 19# 25# 17# 18# | 0.006-2300 | |
| YT25 | 1 | 15# 24# 35# 36# | 0.16-2900 | |
| 2 x YT15 | 2 | 13# 14# 16# 19# 25# 17# 18# | 0.006-2300 |
