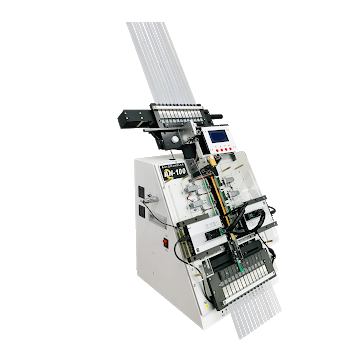

LEAPTRONIX AH-100A Semi-Auto Tube IC Programmer

Feeder: 12 tubes

Automatedly unload the IC based on the programming result, one tube reserved for failed devices

Configurable IC qty. for each tube based on its package

Dual programming verification before procedure being judged as failure

Result logging for convenient production management

Optional 2~4 LEAPER-56 Universal Programmer

Easy to use without needing compressed air, programming 2-4 devices simultaneously to maximize the throughput

Separated Operation controller and UI for fast responding.

Power: 110V/220V 50Hz

Consumption: 0.18kW

Display: LCD

Operation Temp.: +10°C ~ +40°C

Operation Humidity: 10%~95% without frost

Dimension: 480mm(L) * 420mm(W) * 680mm(H)

Weight: 26KG without programmers

* Stand Accessories

Main Unit x1

LEAPER-56 x2-4

AC Cord x1

2A/1B Y-Shape USB Cablex2

1A/1B USB Cable x1

7 Port USB Hub x1

5V 2.0A DC Adaptor x1

USB Drive(SW&Manual) x1

*LEAPER-56 Specification

Logic signal level: 1.5V~6.0V,10mV

IOL, IOH current: 10mA

Logic signal frequency: 75MHz (3-5V), 60MHz (2.5V), 45MHz (1.8V), 25MHz (1.5V)

Signal skew: <±2.5nS (3-5V)

Clock frequency: 0Hz ~ 75MHz

VDD, VIO level: 1.5V~6.5V,10mV

IDD, IIO frequency: 400mA

VPP, VHH level: 1.5V~15.5V,20mV

IPP, IHH frequency: 150mA

Pin drivers: 48 Pin Uuiversal Pin Driver (Zero Inser ion Force)

DUT socket: DIP 48 ZIF

Dimension: 136(L) x 90(W) x 20(H) mm, Socket is not induded

Weight: 282g

*System requirement:

OS: Windows7 / Vista / XP (32bit & 64bit)

CPU: Pentium 4

RAM: 1GB

Storage: SW 500MB UP/Buffer; 1 GB UP (Depends on IC size)

Interface: USB 2.0 high speed

USB Power: Dual USB port, > 600 mA

Optional: sop150mil, ssop150mil, sop210mil, ssop210mil, sop300mil, dip300mil, msop50mil, tssop173mil
