Throughput: 550 U.P.H ( zero programming time)
* Transmission System:
Repeatability: X axis ±0.03mm, Y axis ±0.03mm, Z axis ±0.2mm, Bar axis ±0.01mm
Max. Stroke: X axis 400mm, Y axis 310mm, Z axis 18mm, Bar axis 5mm
Pick & Place Method: Single Vacuum Nozzles
* Position System
Positioning: Preprocessor
Preprocissor Device Dimensions: 30 x 30mm
* Programming System
Resident Programmer: SU-320 Stand-alone Universal & Gang Programmer
Socket Site: 4~16 sockets
Device supported: NOR Flash、NAND Flash、EEPROM .
File Formats Supported: Binary / Machine Code、Intel HEX、TEK HEX、Motorola HEX
* Feeding System
Manural Tray-in / out: JEDEC stander
Physical Specifications:
Dimensions: 520(H) x 700(L) x 550(W)/mm
Net Weight: 70KG
* PC System Requirements
Operating System: Windows7 / Vista / XP (32bit & 64bit)
Processor: Core 2 Duo above
Memory: 2GB RAM above
Hard Disk: 500 MB above, Buffer 4GB above
Interface: USB 2.0 High Speed
* Operation Requirements:
Input Voltage: AC100V~240V, Single-phase, 3-wires
Input Frequency: 50 / 60Hz
Power Consumption: 200W(Max)
* Standard Accessories:

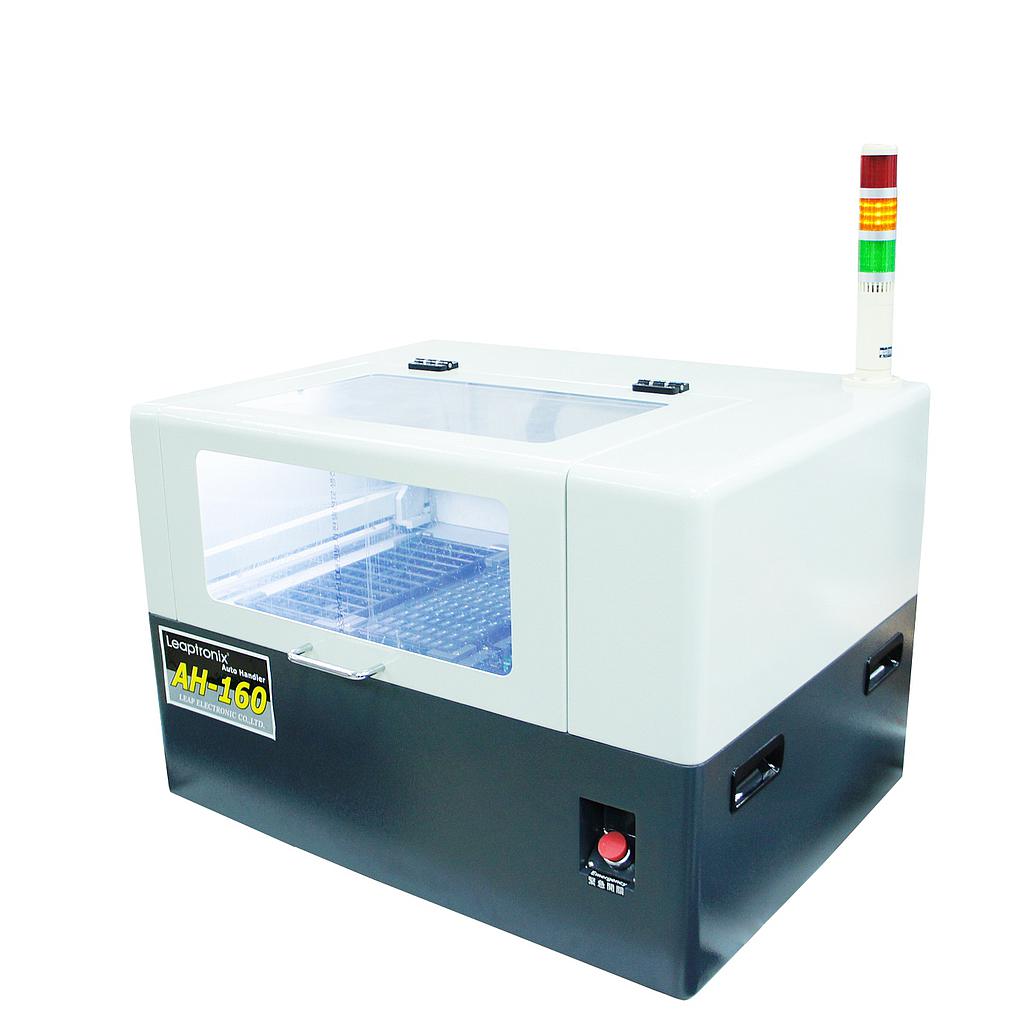

AH-160 Universal Programmer Main unit x 1
SU-320 Stand-alone Universal & Gang Programmer x4
CD(included driver and manual)x1
USB cable x 1
AC cable x 1
* Optional Module Adapter
NOR-TSOP48-X4, NOR-TSOP56-29-X4, NOR-TSOP56-J3-X4, NOR-TSOP56-P3-X4, SFLASH-SOP16-X4, SFLASH-BGA24-4x6B-X4, SFLASH-BGA24-5x5B-X4, SOP8-207-X4, SOP8-150-X4, SON8-4x4-X4, WSON8-1.97x2.46-X4, WSON8-2x3-X4, WSON8-5x6-X4, WSON8-6x8-X4, BGA64-J3-P3-X4(10x13), BGA64-J3-P3-X4(10x8), BGA64-29-X4(10x13), BGA64-29-X4(11x13), BGA64-29-X4(9x9) ...etc
