Leaptronix uP-2 MCS-51 / AVR / PIC MCU Experimental Board

Name: Leaptronix uP-2 MCS-51 / AVR / PIC MCU Experimental Board
Brand: LEAPTRONIX
Price: 1358500 MMK
Availability: OutOfStock

ManufacturerLEAPTRONIX(View more products from this manufacturer)

ModeluP-2

OriginTaiwan

1,358,500 Kyat

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Manufacturer Leaptronix

Model: uP-2

Datasheet

MCS-51 / AVR / PIC MCU Experimental Board

Introduction

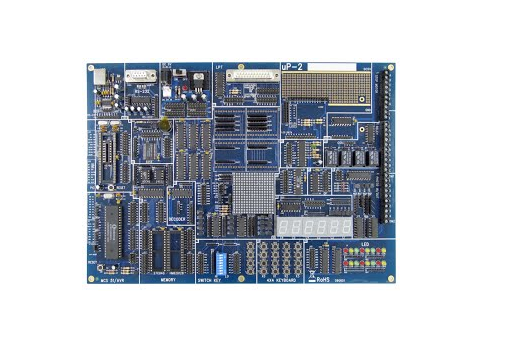

The uP-2 is included MCS-51, AVR and PIC which are the top 3 popular MCUs on the market. The platform is flexible design. Each part of the experiments has their own circuit block. You can combine the experimental example or designated topic circuit for your own subject. The uP-2 is the best platform for learning MCU.

Features

Applied subjects are included MCS-5X/AVR/PIC16F8XX.
Available 20 or 40 pin MUC.
Compatible with many brands of emulators.
System is designed on stand-alone CPU, interface separately.
Provide 26 circuit units.
All of the circuits are able to combined with cable wires by users.
No need to Solder, saving time.
385 holes on the board which provide users for extended application or subjective experiments.
The Power is provided two kinds of input, 9V adaptor or DC 9V.

Circuit Unit

20 & 40 pin MCS-51/AVR IC socket
20 & 40 pin PIC16F8XX IC socket
USB
RS-232
Printer port
EPROM/FLASH socket for program extension, up to 512K x 8bits
SRAM socket for program extension, up to 512K x 8bits
IO decoder
Red/yellow/green LED
6 digits 7 segment display
Stand-alone push button x 4
DIP switches
16x16 two colors dot matrix LED
System power supply
A/D ADC0804 IC
D/A AD7528 IC
LCD socket extension.
OP LM324 IC
Relay x 4
Step Motor driver ULN2003
82C55 IO extension
Buzzer output
EEPROM 93C46 & 24C02
Matrix keypad circuit x 16(4x4)
385 hole universal board

Experimental Contents

LED
Push button
Single and dual Traffic light control
Neon lamp
Extended program memory
Extended data memory
Extended EEPROM recode data
16x16 double color dot matrix display, Character/graph
6 digits dynamic 7 segment display LCD circuit (LCD is option)
Step motor driver circuit (need connect to external motor)
Relay control 4x4 matrix keypad scan circuit
Press button circuit
Touch switch read and set
Timer
Password key
Electronic piano
Counter
A/D and D/A conversion
8255 I/O extension
Multi I/O decode
Serial Peripheral Interface
Printer interface
USB interface
USB transfer to RS-232
OPTO input & output

Specification

Operating System: Windows 8 32/64bits, Windows 7 32/64bits, Windows VISTA 32/64bits, Windows XP 32/64bits
Communication: Printer / RS-232 / USB Port
Power: 9V DC Adaptor / 9V DC Extend Power Pin
Dimension: 316 mm x 222mm x 2.1cm
Weight: 700g

Standard Accessories

Main Board x1
8 Pin Cable x4
4 Pin Cable x4
2 Pin Cable x8
USB Cable x1
CD (included user manual, Boot codes, examples) x1
AC110V/DC9V/500mA Power Adaptor................x1
W78E052DDG IC............x1

Optional Accessories

WICE-52 MCS-51 On-Board-Debug
3-in-1 Module Kit
Using this board for extending motor module,fan module and sensor module.
Motor module
For step motor control experiment
Fan module
For fan speed control experiment
Sensor Module
