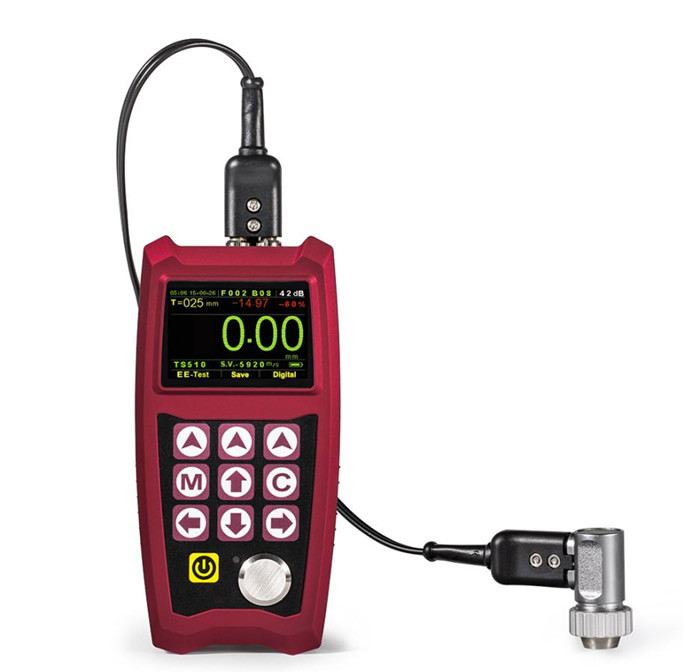

Leeb UEE960 Ultrasonic thickness gauge (0.75～1000.00mm; 0.01mm)

Measuring range(mm): 0.75～1000.00mm

Frequency (MHz): 0.5～15.0MHz

Resolution(mm): 0.01mm

Accuracy(mm): ± 0.1 mm ( H ＜10mm)

±(0.5%H+0.01) (H＞10mm)

H refers to the thickness of testing piece

Max coating thickness: 1mm

Measuring range (through coating): 2～150mm

Velocity range(m/s): 1000～9999m/s

Type of probe: Double crystal

Storage: 128,000 groups (measuring data);  255 groups( B scan grraph)

Display: 2.4" High-definition color display

Display units: mm & inch

Output port: Mini USB

Operating temperature: -20℃～50℃

Power supply: 3 * AA

Dimensions: 150×75×32（mm）

Weight: 275g
