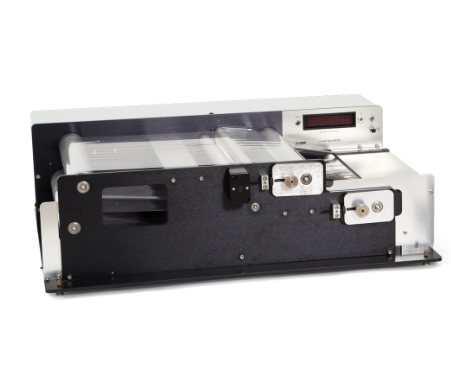

LI-COR LI-3100C Area Meter (Max 25.4 cm, Min 1.5 ~ 3.0 mm)

Resolution: 1 mm2 or 0.1 mm2 (adjustable)

Scanning Area:

1 mm2 Resolution: 1 mm x 1 mm

0.1 mm2 Resolution: 0.300 mm W x 0.333 mm L

Display Capacity:

1 mm2 Resolution: 999,999.99 cm2

0.1 mm2 Resolution: 99,999.999 cm2

Display: Full 8-digit LED

Width: 25.4 cm max; 1.5 to 3.0 mm min

Thickness: Up to 2 cm, user-expandable to 2.5 cm

Length: Unlimited

Conveyor Belt Speed: 8.0 cm/s at 60 Hz; 6.7 cm/s at 50 Hz

Light Source: 15 W fluorescent tube

Transparent Belts: Rugged clear vinyl

Power Requirements: 108-126/216-252 VAC, 48 to 66 Hz, 100 W max

Operating Temperature: +15 to + 55 °C

Storage Temperature: -20 to + 65 °C

Size: 25.0 H x 60.0 W x 73.0 L cm (9.8" x 23.6" x 28.7")

Weight: 43 kg (95 lb)
