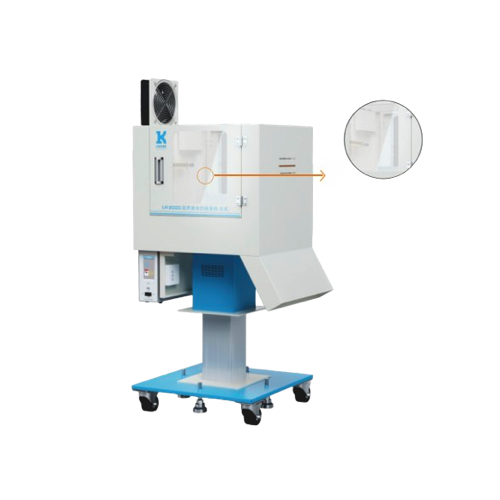

Lingke LA 2000 Vertical Type Ultrasonic Degating Machine (20kHz / 15kHz; 2500W / 3000W)

Frequency: 20kHz / 15kHz

Power: 2500W / 3000W

Output Time: 0.01-9.99s

Input Voltage: AC220V

Connecting Plug: DB9 / DB15

Power Detection: Realtime

Counter (Digital Type): 0-999999 pcs

Error Message (Digital Type): Screen Display

Display Screen (Digitalization): Full color high-definition touch screen

Internal Amplitude/Power (Digital Type): 10% to 100% adjustable

Menu Language: Chinese / English (customized language supported)

Buzzer (Digital Type): Tapping the touch screen will make a sound.

Internal Power Supply: 12V DC / 24V DC 500mA (overload and short-circuit protection)

Maximum Feed Size 578.5 × 477 mm (Max)

Dimension - Press: 766 × 578 × 1792 mm

Dimension - Digital Generator: 430 × 230 × 108 mm

Dimension - Analog Generator: 530 × 405 × 155 mm

Net Weight - Press: 72.5kg

Net Weight - Digital Generator: 6.5kg

Net Weight - Analog Generator: 14.5kg
