1) The tested luminaire rotates around the mirror with an angle of (γ)±180°(or 0-360°) and the tested luminaire rotates around itself with an angle of (C)±180°(or 0-360°)
2) The accuracy of angle: 0.05° Resolution of angle: 0.001°
3) Luminosity Testing Range: Illuminance 0.001lx~99,999lx; Light Intensity 1.0cd～10^7cd(detector)
4) Accuracy of photometry: Germany produced constant temperature photodetector DIN5032-6/CIE pub1. No. 69 Class L
5) Testing Accuracy: 2%(Under Standard lamp); Stray Light: less than 0.1%
6) Work with high accuracy and quick CCD Spectroradiometer to measure spatial color parameters.
7) Accuracy of chromaticity coordinate: ±0.0015 or ±0.0005(under standard Alamp)
8) Spectral Range Wavelength: 380nm ~780nm; Accuracy of wavelength: ±05nm
9) English version software can run in Win7, Win8 or Win10.
Measure Size (mm): Diameter=1400
Measure Weight (Kg): 40
Measure Power(W): 600V/10A，AC/DC
System Configuration:

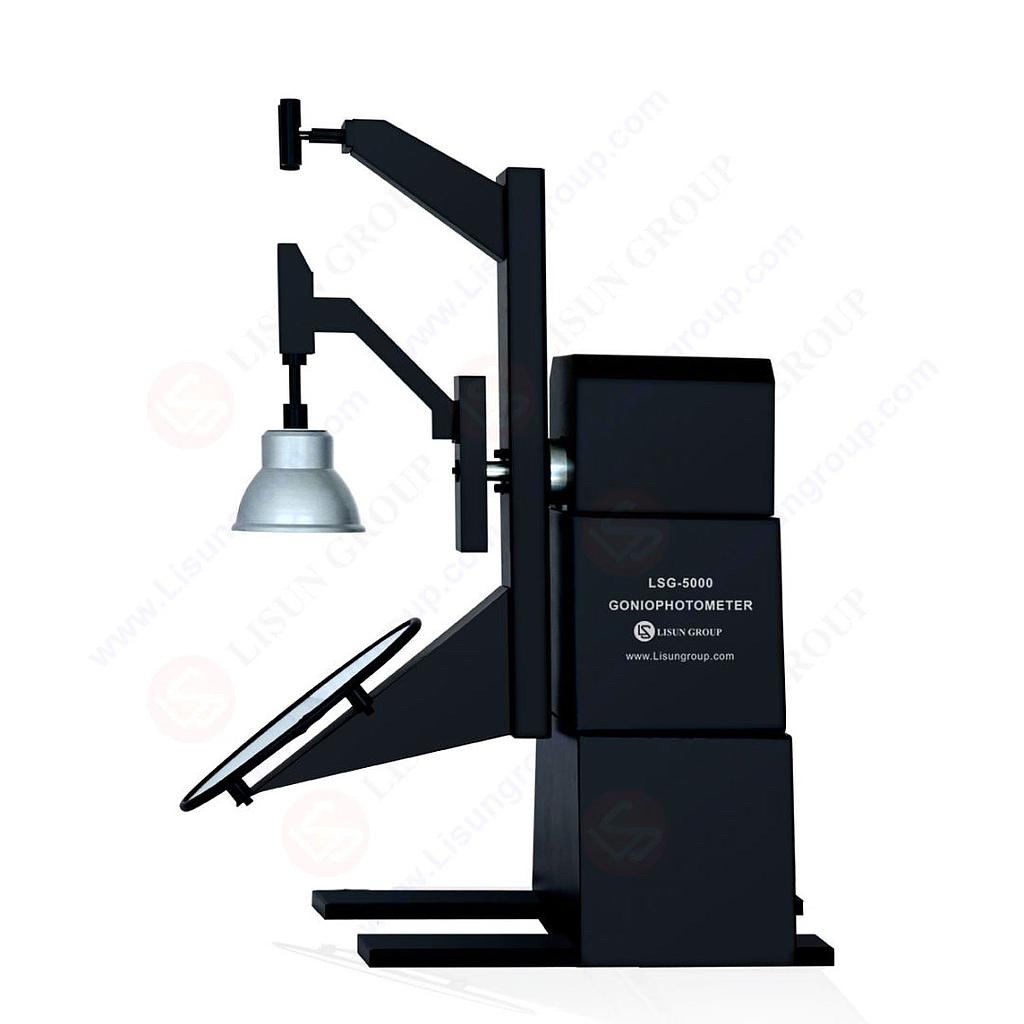

A. LSG-5000CCD Goniospectroradiometer System:
B. SLS-150W DC Standard Light Intensity Lamp
C. LS2050 Digital Power Meter
D. DC3010 CC & CV DC Power Source
E. LSP-1KVAR AC Power Source: 1KVA Pure Sine Wave AC Power Source
F. CASE-19IN 19inch Standard Instruments Cabinet.
G. LMS-9000B High Precision CCD Spectraidomeeter
H. CLAMP-9000 Accessories and Adjustable Tripod for LMS-9000B
