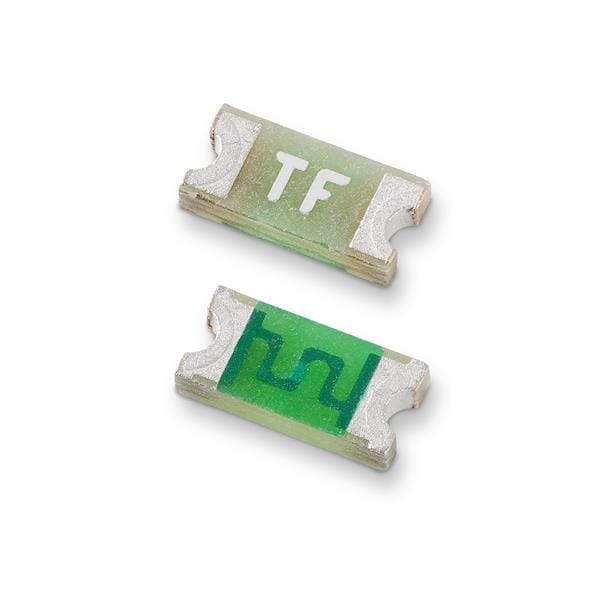

Littelfuse 046801.5NRHF Surface Mount Fuses 1206 SLO-BLO 1.5A SLIMLINE HALIDE FREE
Manufacturer: Littelfuse Model: 046801.5NRHF - Contact
Width: 1.52 mm
Height: 0.58 mm
Length: 3.18 mm
Fuse Type: Time Delay / Slow Blow
Resistance: 44 mOhms
Unit Weight: 9.500 mg
Current Rating: 1.5 A
Interrupt Rating: 50 A at 63 VAC, 50 A at 63 VDC
Fuse Size / Group: 1206 (3216 metric)
Voltage Rating AC: 63 VAC
Voltage Rating DC: 63 VDC
Maximum Operating Temperature: + 90 C
Minimum Operating Temperature: - 55 C
