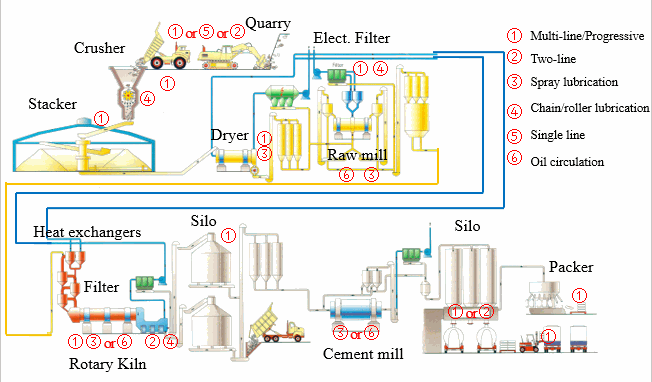

Lubrication Methods Sketch Diagram For Cement Plant
Lubrication Characteristics For Cement Plant
- Heavy load, dusty
Raw mill, Riding wheel of rotary kiln, cement mill, coal mill
- Excessive vibration
Vibrating screen
- High temperature
Cooling air blower, drive gearbox of rotary kiln
- Poor seal, heavy load start
Open gear of rotary kiln
- Key equipment is very expensive
Great loss for unscheduled downtime
Lubrication Solution For Rock Drill
Lubrication system for rock drill
Two oil pipelines which are controlled by control valves transport rock drill oil to the following lubrication points respectively from oil tank.
- Impact mechanism
- Gear system
Requirements for rock drill oils
- Good anti-wear performance
- Excellent corrosion resistance and anti-rust property
- Resistance to water wash
- Outstanding low-temperature performance
Lubrication Solution For Crawler Loader
- Engine: Super GPO 15W40
- Gearbox/ Rear axle: APG-140
- All the grease nipples: No. 1552/1242/Synxtreme HD-2/220
Lubrication Solution For Electric Shovel
Lubrication points
Electric shovel
Engine: Super GPO 15W40
Walking, mechanism, slewing ring gear
APG 80W-140 / Synlube HD 320
All grease nipples: No. 1552/ 1242/ Synxtreme HD-2/220
Wire rope: Chain & Cable fluid
Lubrication Solution For Crusher
Center greasing system ( bearing, motor bearing): Lubriplate No. 1242/SYN-1602
Speed variator: Lubriplate APG series/ Synlube HD series
Loading system: Lubriplate HO / ZF series/ Synlube series
Lubrication For Hammer Crusher / Re-crushing
Vibrating Screen
- Gearbox: APG series/ Synlube HD series
- Grease fittings: No.1500 series / Synxtreme HD series

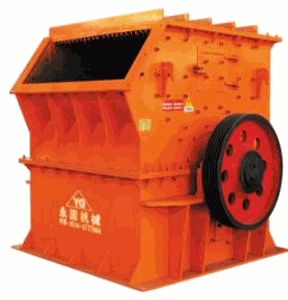

Hammer crusher
- Centralized greasing system: No.1500 series / Synxtreme HD series
Lubrication For Belt Conveyor
Motor bearing: Poly HP-2/ Synxtreme HD-2/220
Gearbox: SPO series / Synlube series
Coupling: LTR-2/ SYN-3002
Bearing: No. 1552/ Synxtreme HD-2/220
Lubrication Solution For Raw Meal Stockpile
Speed variator: APG-90 / Synlube HD 150
Hinge pin: No. 1552
Wire rope: Chain & cable fluid.
Lubrication For Clay Dryer & Fan Blower
Clay dryer
Gearbox: APG series/ Synlube HD series
Open gear: No. 176
Fan blower bearing: No. 1552/ High Temp/ Synxtreme HD-2/220
Others grease nipples: No. 1552/ SYN-1602

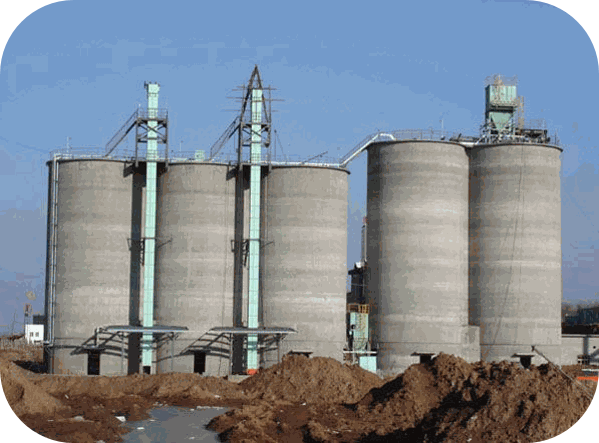

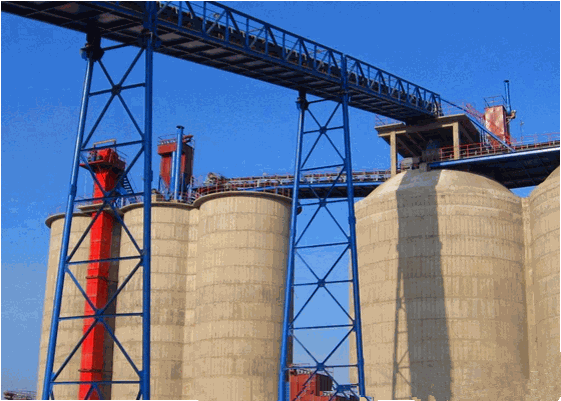

Lubrication For Raw Meal Blend And Storage Silo
Belt conveyor
Gearbox: APG series/ Synlube HD series
Bearing: No. 1552
Lubrication For Elevator Of Raw Meal Storage And Blend
Bucket elevator
Gear reducer: Synlue 220/ Synlube HD 220/ PGO-220
Bearing: No. 1552/ Synxtreme HD-2/220
Hydraulic coupling: HO-0/ZF-32/ Synlube 32
Scale Feeder For Clay, Iron Sand, Sand Stone, Limestone
Gearbox: APG-90/ Synlube HD 220
Block even bearings: No.1550/ Synxtreme HD-2/220

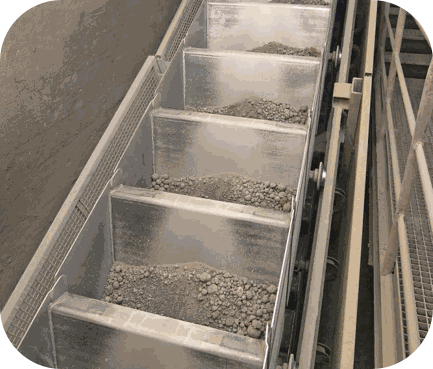

Lubrication For Pan Conveyor
Pan conveyor for Clay/ Iron sand/ Sandstone/ Limestone
Gearbox:
APG-80W140/ APG-140
Synlube HD 320/ 460
SPO-266/277/ Synlube 320/460
Lubrication For Rotatory Feeder Valve
Rotatory feeder valve
- Gearbox: APG-150/SPO-255/ Synlube HD 220/ Synlube 220
- Bearing and shaft seal: No. 1552/ Synxtreme HD-2/220
Hammer mill
- Gear reducer: APG-150/SPO-255/ Synlube HD 220/ Synlube 220
- Bearing: No. 1552/ Synxtreme HD-2/220
Lubrication For Roller Mill
Roller mill （Vertical mill )
Gear reducer: APG 80W-140/ Synlube HD 320
Bearing: No. 1552
Lubrication For Roller Mill
Oil which is used for millstone drive, grinder roll bearing, is required to have low traction coefficient and does not corrode copper.
PGO-680
F.L Smith grinder roll bearing: Synlube 1000
Hydraulic System Of Roller Mill
Hydraulic System: HO-46 /ZF-46 / Synlube 46

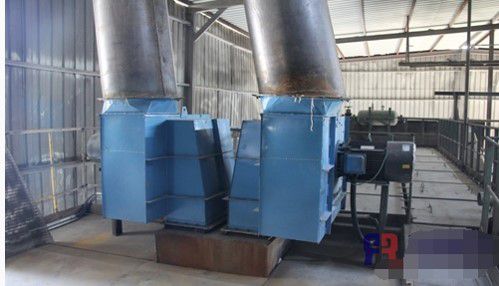

Lubrication For Bucket Elevator
Bucket elevator
Gear reducer: Synlue 320/ Synlube HD 320/ PGO-320
Bearing: No. 1552/ Synxtreme HD-2/220
Hydraulic coupling: HO-0/ZF-32/ Synlube 32
Lubrication Of Air Blower For Mill
Air blower for mill (mill-separator)
Bearing: HO series/ ZF series / Synlube series
Separator:
Vane bearing（high temperature resistance)
Synxtreme HD-2

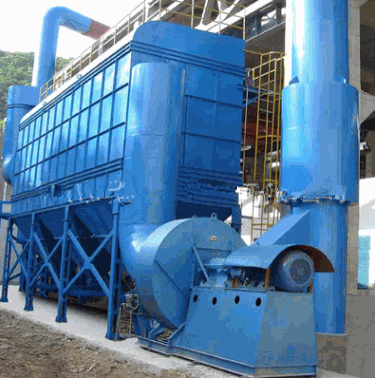

Lubrication Of Air Blower for Electrostatic Precipitation
Air blower for electrostatic precipitation
Bearing: No. 1552/ Synxtreme HD-2/220
Polarline hammer rapper, counter electrode shaker
Gear reducer: APG-250/ Synlube HD 680
Bearing: Poly HP-2/ Synxtreme HD-2

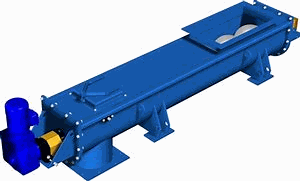

Lubrication For Screw Conveyor
Screw Conveyor
Gear reducer: APG-90 / Synlube HD 220
Bearing and shaft seal:No. 1552/ Synxtreme HD-2/220

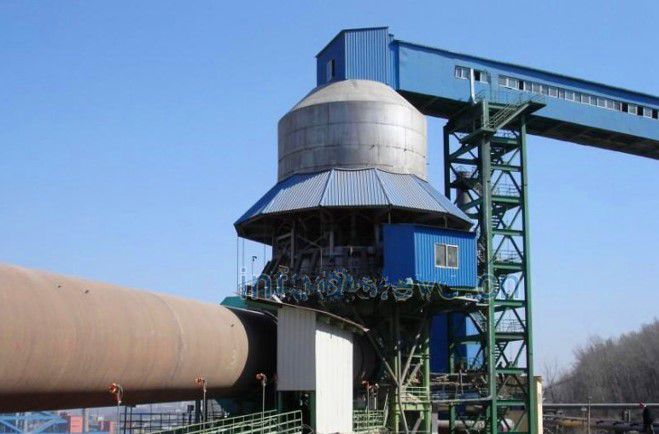

Lubrication Of Air Blower For Preheater
Air blower for preheater
Gear reducer: APG-90/ Synlube HD 220/ SPO-255/ Synlube 220
Bearing: No. 1552/ Synxtreme HD-2/220
Lubrication For Rotary Kiln
Rotary Kiln
Gear reducer: PGO 320-460
Open gear: No. 176
Coupling: No. 1444/SYN -602
Motor bearing: Poly HP-2/ Synxtreme HD-2/220
Lubrication For Riding Wheel of Rotary Kiln
Riding wheel bearing (Supporting wheel)
Synlube 1000
Synlube HD 460-1000
PGO-460/680
Lubrication For Bearing Disc Of Rotary Kiln
Bearing: APG series/ Synlube HD series
Hydraulic system: HO series/ ZF series/ Synlube series

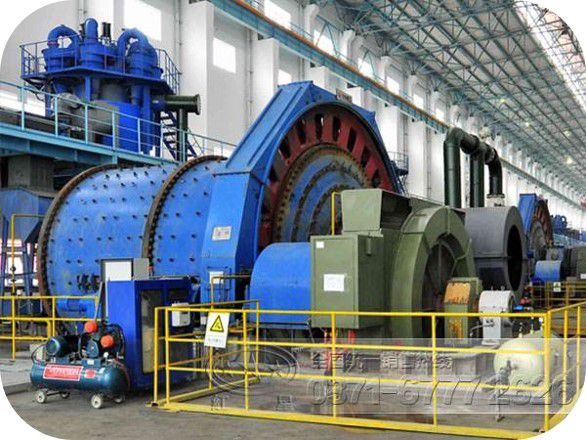

Lubrication For Ball Mill
Gear reducer: APG 80W-140/ Synlube HD 320/ PGO-320
Bearing: APG-140 or APG 250/ Synlube 460-680
Open gear: No. 176

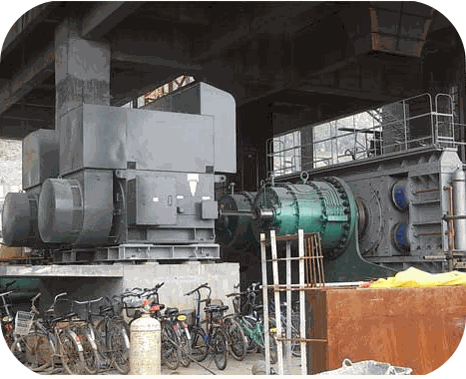

Lubrication For Roller Press
Gear reducer: APG-140/ Synlube HD 460/ SPO-277/ Synlube 460
MAAG gear reducer: APG-90/ Synlube HD 220
Lubrication For Grate Cooler
Gear reducer: APG series/ Synlube HD series/ PGO-series
Air blower bearing: No.1552/ Synxtreme HD-2/220
Motor bearing: Poly HP-2/ Synxtreme HD-2/220
Hydraulic system: HO-1/ ZF-46/ Synlube 46
Centralized lubrication system ( If ): No. 1500
Center lubrication ( If ): No. 1552/ No. 1242/ Synxtreme HD-2/220
Lubrication For Coal Mill System

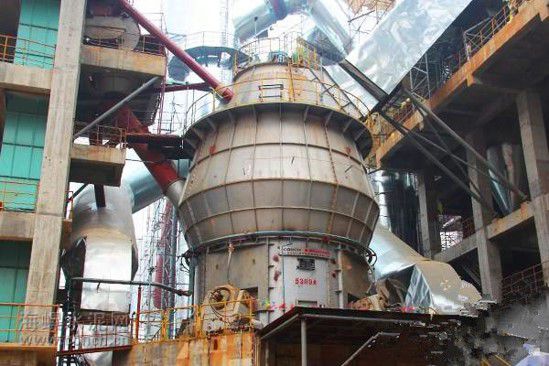

Vertical coal mill
Gearbox: APG series/ Synlube series/ Synlube HD series/ PGO series (VG 460-1000)
Roller mill bearing: Synlube 460/ Synlube HD 460/ PGO-460
Lubrication For Coal Mill System
Coal mill ( Ball mill )
Gear Reducer: APG 80W140/ Synlube HD 320
Bearing: Synlube 460/Synlube HD460/ PGO 460
Open gear: No.176
Lubrication For Auxiliary Equipment In Cement Plant
Lubrication For Air Compressors in Cement Plant
Screw compressor: Synlube series (VG32-46)
Reciprocating compressor: AC series/Synlube series (VG 68-150)

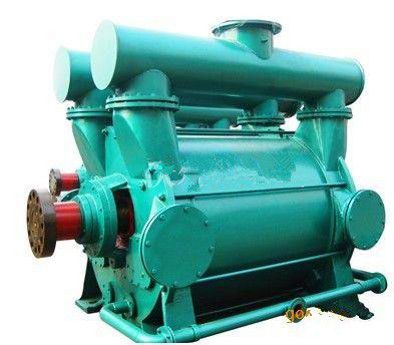

Lubrication For Vacuum Pump In Cement Plant

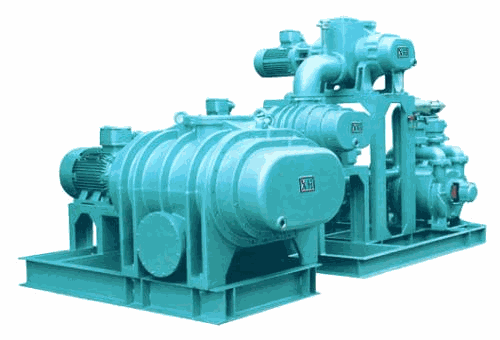

Lubrication For Roots Blower
Roots blower: APG series/ Synlube HD series /Synlube series
Bearing: No. 630-2/ No. 1552/ Synxtreme HD -2/220
Waste Gas Generation System

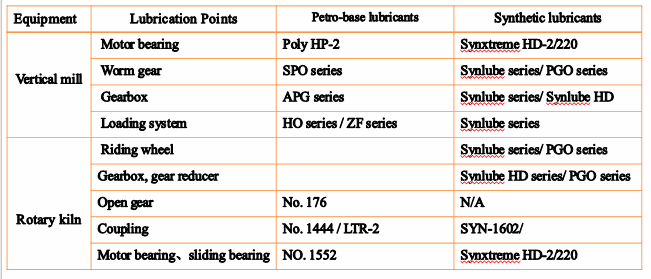

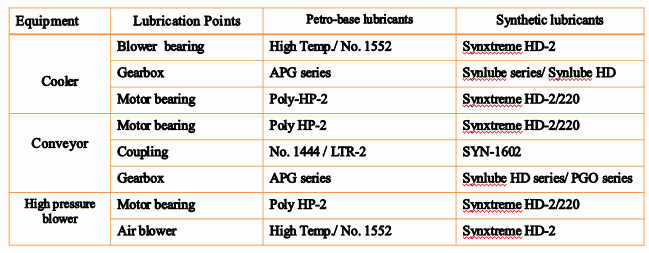

Summary of Lubricant Variety For Cement Plant

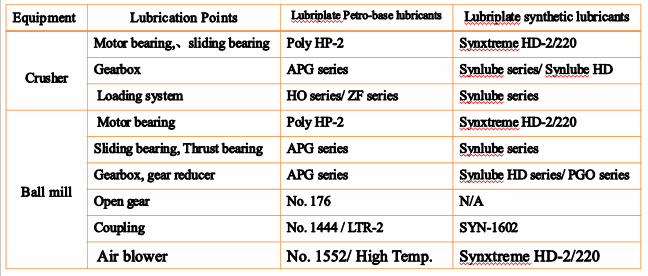

Summary of Lubriplate Lubricant Variety For Cement Plant
Summary of Lubriplate Lubricant Variety For Cement Plant

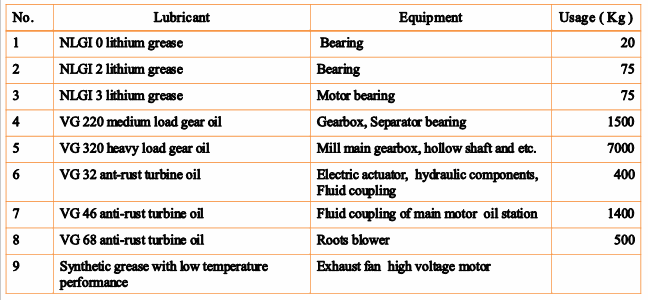

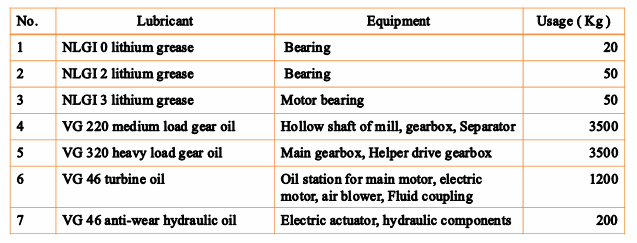

Lubricant Consumption For Ø 3.8 M Mill System First Time

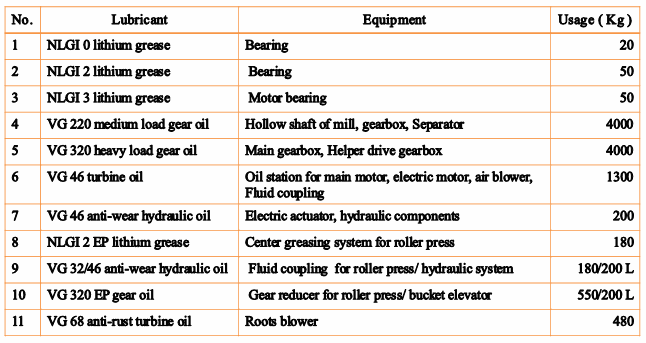

Lubricant Consumption For Ø 4.2 M Mill System First Time With Roller Press
Lubricant Consumption For Ø 4.2 M Mill System First Time

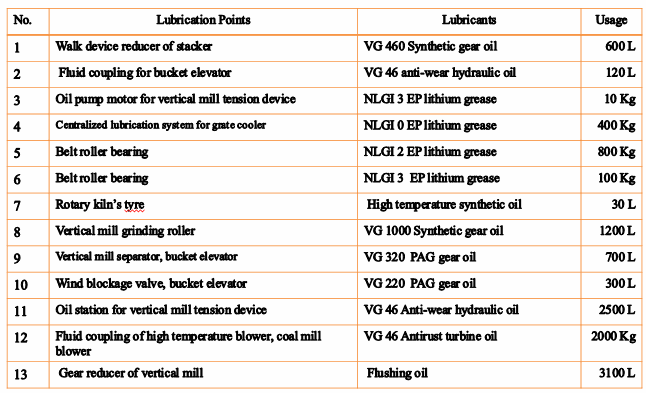

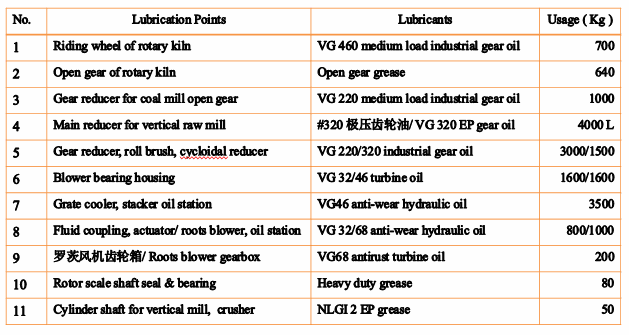

Lubricant Consumption For 5000 t/d Clinker Production Line
Lubricant Consumption For 5000 t/d Clinker Production Line

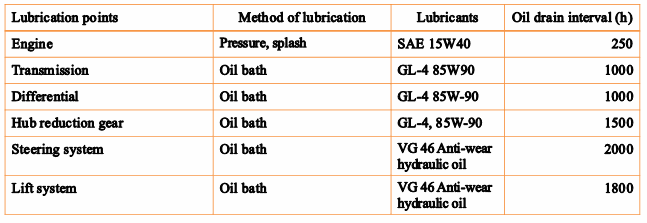

Lubricants For Mine Mechanical Engineering

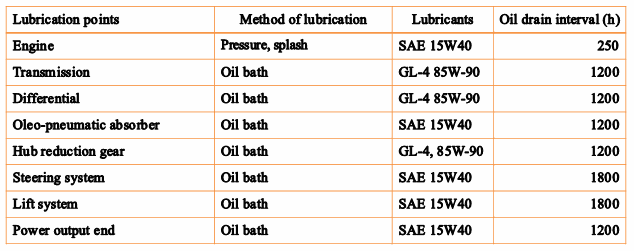

Lubricants For Mine Mechanical Engineering
