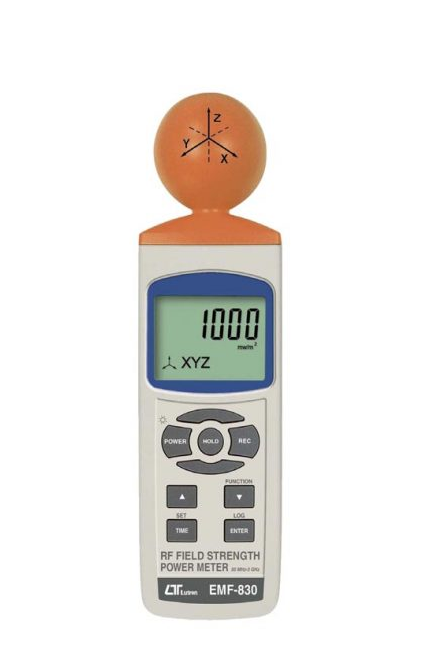

LUTRON EMF-830 RF FIELD STRENGTH POWER METER

Circuit: Custom one-chip of microprocessor LSI circuit

Display: LCD size : 52 mm x 38 mm, LCD with backlight ( on/off ).

Frequency range:

Sensor axis no. 3 axis RF sensor.

Data Hold Freeze the display reading

Power Supply: Alkaline or heavy duty DC 1.5 V battery, ( UM3, AA ) x 6 PCs, or equivalent

ADC 9V adapter input. ( AC/DC power adapter is optional ).

Power Current Normal operation ( and LCD Backlight is OFF) : Approx. DC 3.5 mA.

Weight: 265 g/0.58 LB.

Dimension: 230 x 70 x 45 mm

Accessories * Instruction manual...........................1 PC (included)

Optional Accessories:

AC to DC 9V adapter.

USB power to DC 9V converter, USBP-59

USB cable, USB-01.

RS232 cable, UPCB-02

Data acquisition software, SW-U801-WIN

Excel data acquisition software, SW-E802.

Soft carrying case, CA-05A.

Datasheet
