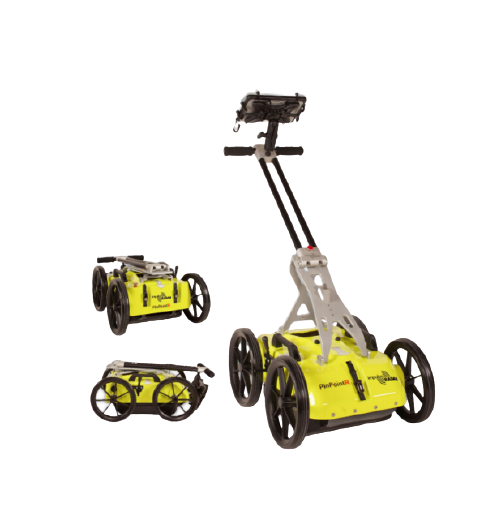

MADE PinPointR Detect, Avoid, and Map Underground Utilities (400 MHz & 800 MHz)

KEY FEATURES

• ImpulseRadar RTS-based antenna technology

• Internal data security

• Dual-channel operation 400 MHZ (LF) & 800 MHz (HF)

• Integrated GPS, with external GPS support (NMEA 0183 protocol)

• Android-driven interface

• Impressive 7-hour battery life

• Wireless data acquisition

• No survey speed limitation

Central Frequency: 400 MHz & 800 MHz (dual-channel)

Detection Depth: Up to 6m / 20 ft

Acquisition Speed: >130 km/h or 81 mph (at 5 on point interval)

Scan Interval: User defined

Positioning: Wheel encoder, internal GM, or external GAS (NMEA 0183 protocol)

Environmental: IP65

Weight: 20kg (Cart, Antenna, and display)

Battery: li--Ion 12V / 13 A. Up to 7-hours operating time

Operating Temperature: -20°C~ +50°C/ -4°F ~ 122°F

Regulatory: CE, FCC & IC approved
