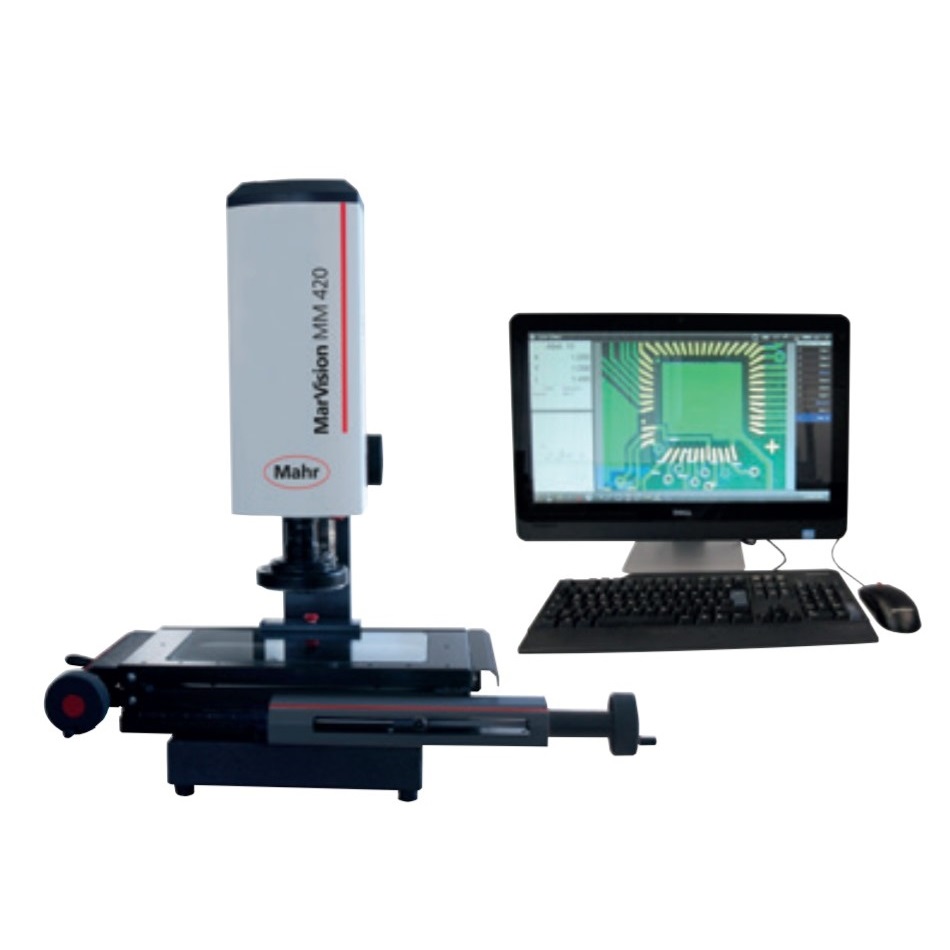

Mahr 4247601 Workshop Measuring Microscope with M3 Software (MM 420, X/Y 200mm/100mm, M3-Touchscreen PC 30-225x)

Measuring range X/Y (mm):200 / 100

Size of table (mm):370 x 210

Maximum table load(kg):20

Measuring system: Built-in incremental scale

Measuring system - resolution (mm):0.001

Measuring system - E1 X/Y (µm):1.9 + (L/100)

Measuring system - E2 XY (µm): 2.9 + (L/100)

Magnification: 35 – 225x

Max. height of test piece (mm): 115

Max. height of test piece / 0.5-fold(mm): 20

Max. height of test piece with coax. (mm):115

200 extension in Z (mm):315

200 extension in Z / 0.5-fold (mm): 220

Illumination: LED back and front illumination, adjustable

Energy supply: 230 V / 50 Hz

H x W x D (mm): 700 x 650 x 550
