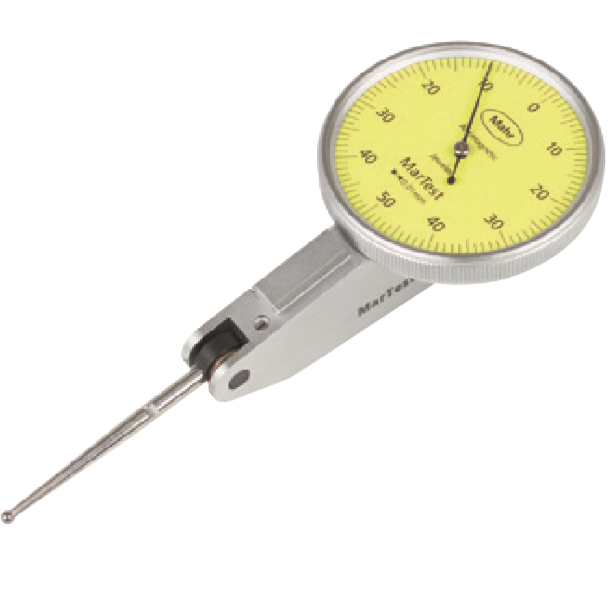

Mahr 4301300 Test Indicator (800 SGB, ± 0.5mm)
Manufacturer: Mahr Model: 4301300 Origin: Czech Republic - Contact
Product type: 800 SGB
Measuring range: ± 0.5mm
Graduation value: 0.01mm
Measuring surface: carbide
Scale diameter: 38mm
Type of dial face: 50– 0– 50
Dial color: Yellow
Measuring force N: 0.07
Range per rev.: 1mm
Deviation range fe µm: 10
Total deviation range fges µm: 13
Hysteresis fu µm: 4
Partial measuring span ft µm: 5
Repeatability fw µm: 3
Standard: Factory standard
Package contains: case, instruction manual, spanner for changing the styli, stylus dia. ø 2 mm, mounting shaft 800a6 (800 SA/SGA/SGB), mounting shaft 800a8
Accessories:
Stylus ø 1.0 mm, carbide, l = 32.3 mm, type 800 tb
Stylus ø 2.0 mm, carbide, l = 32.3 mm, type 800 tb
Stylus ø 3.0 mm, carbide, l = 32.3 mm, type 800 tb
Stylus ø 2.0 mm, ruby, l = 32.3mm, type 800 tbr
Spanner
Stylus ø 1.0 mm, carbide, l = 41.24 mm, type 800 tl
Stylus ø 2.0 mm, carbide, l = 41.24 mm, type 800 tl
Stylus ø 3.0 mm, carbide, l = 41.24 mm, type 800 tl
Stylus ø 2.0 mm, ruby, l = 41.24 mm, type 800 tlr
FEATURES
With long stylus, for measurements at poorly accessible measuring points
• High-contrast dial face, sealed with O-ring
• Mineral glass viewing panel for best protection: - against cracking, scratching or damage caused by hot shavings - optimum resistance to solvents
• Matt chrome-plated protective casing with three integrated dovetail guide rails
• Shockproof measuring mechanism
• Anti-magnetic model
• Automatic adjustment to the contacting direction ensuring infallible readings
• Ball bearing mounted double lever
• Friction clutch overload protection
