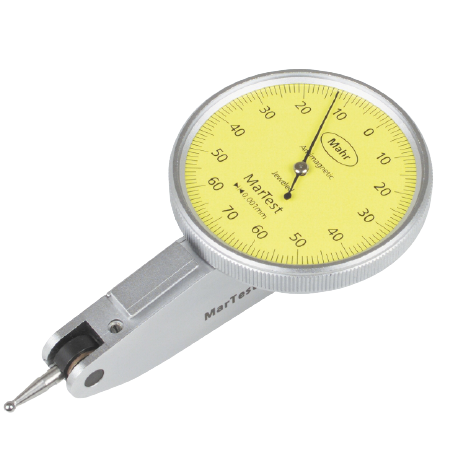

Mahr 4308220 Test Indicator (800 SGE, ± 0.07mm)

Product type: 800 SGE

Measuring range: ± 0.07mm

Graduation value: 0.001mm

Measuring surface: carbide

Scale diameter: 38mm

Type of dial face: 70– 0– 70

Dial color: Yellow

Measuring force N: 0.2

Range per rev.: 0.14mm

Deviation range fe µm: 3

Total deviation range fges µm: 4

Hysteresis fu µm: 2

Partial measuring span ft µm: 2

Repeatability fw µm: 1.5

Standard: factory

Package contains: case, instruction manual, spanner for  changing the styli, stylus dia.  ø 2 mm, mounting shaft 800a8

Accessories:

• Stylus ø 1.0 mm, carbide, l = 9.1 mm, type 800 te

• Stylus ø 2.0 mm, carbide, l = 9.1 mm, type 800 te

• Stylus ø 3.0 mm, carbide, l = 9.1 mm, type 800 te

• Stylus ø 2.0 mm, ruby, l = 9.1mm, type 800 ter

• Spanner
