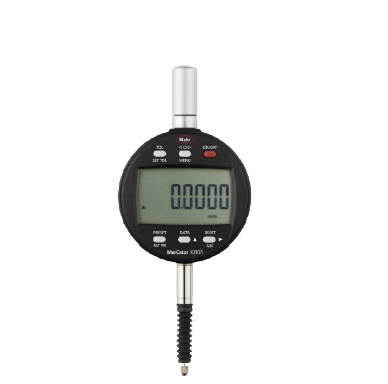

Mahr 4337640 Digital Indicator (1086 WR, 12.5mm/.5”)

Product type 1086 WR

Measuring span: 12.5mm/.5”

Resolution: 0.0005, 0.001, 0.002, 0.005, 0.01mm/.00002”, .00005”, .0001”, .0002”, .0005”

Error limit mm: 0.004

Error limit over 50 graduations: 0.002mm

Repeatability: 0.001mm

Measuring force N: 0.65 – 1.4

Standard:Factory standard

Protective measuring spindle cap: yes

Package contains: battery, instruction manual

Accessories:

• Adjustable back

• Screw back

• Rack back

• Adjustable back for 75B

• Post back

• 16 EXu Data connection cable USB (2 m), type 16 EXu

• Digimatic data cable (2 m), type 16 EWd

• Data connection cable RS232C (2 m), type 16 EXr

• Protective cap for 1075 R / 1086 R / 1087 R, type 1086 s

• Lug back, type 1086 b

• Cable release (12.5 + 25 mm), type 1085 a

• Pneumatic lifting (12.5 + 25 mm), type 1082 p

• Adapter bush (.375” / 8 mm), type 940

• Battery 3 V, type CR 2450

• Pneumatic lifting (50 + 100 mm), type 1082 p

• Rubber below (25mm)
