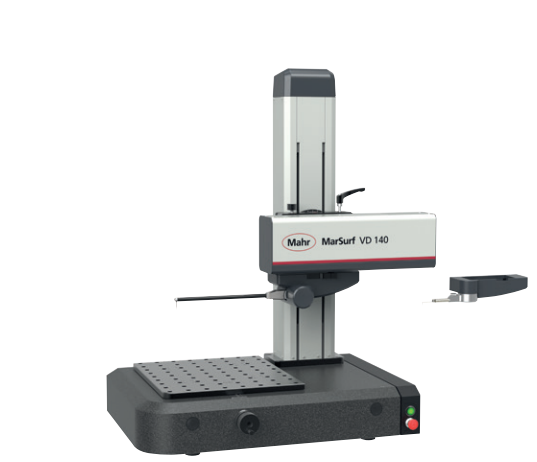

Mahr MarSurf VD 140 BG 12 Roughness and Contour Measuring Station (X 140mm, Z 350mm)

Start of traversing length (in X):0 mm

End of traversing length (in X): 140 mm

350 mm Z-axis

With angle adjustment of the X-axis

Positioning speed: 0.02 – 200 mm/s (in X)

Guide deviation:0.07 µm / 20 mm (with probe system BFW 250),0.35 µm / 60 mm,0.4 µm / 140 mm

Measuring speed: Up to 10 mm/s

Measuring range:

- With probe system BFW 250:

        500 µm (±250 µm) for probe arm length 45 mm

        1500 µm (±750 µm) for probe arm length 135 mm

- With probe system C 11:

        70 mm with probe arm length 350 mm

        max. 100 mm with probe arm length 490 mm
