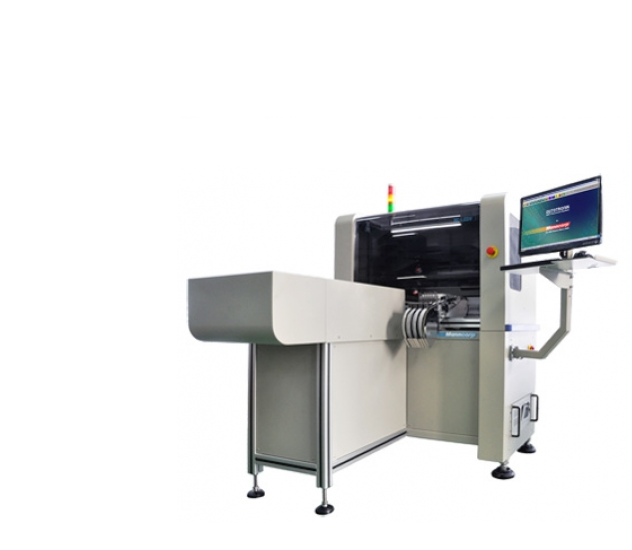

Manufacturer: Manncorp - US
Model: MC-LEDV4-1800
Origin: China
Warranty: 12 months
Placement Specifications
Number of Placement Heads: 4
Placement Rate (IPC-9850)*: 15,000 CPH
Placement Accuracy: 30 µm, 3 Sigma
Minimum LED Size: 0.6 mm × 0.3 mm (0.024 in × 0.012 in)
Maximum LED Size: 8 mm x 8 mm x 5 mm (0.31" x 0.31" x 0.20") with on-the-fly vision
Capability for Other SMDs: Same maximum and minimum component size as LEDs
Pick Up Specifications
Tool Changer: yes
Number of Tools: 6
Accepts Additional Tool Changers: Yes
Integral Vacuum: Yes
Board Handling Specifications
Board Handling Method: Magnetic fixture worktable (standard) or inline conveyor (optional)
Max. Board Length: 70.8" (1800 mm) Full length assembled in a single pass
Max. Board Width: 11.8" (300 mm); 10.2" (260 mm) with inline conveyor option
Board Thickness: 0.008" to 0.12" (0.2 mm to 3.0 mm); 0.008" to 0.197" (0.2 mm to 5.0 mm) with inline conveyor option
Fiducial Recognition/ Coordinate Correction: Yes
Bad Mark Detection: Yes
Feeder Capacity
Maximum Number of Feeder Ports: 16
Tape Feeder Sizes: 8, 12, 16 and 24 mm
Programming
Operating System: Windows® 7
PC, Keyboard, Mouse: Yes
Monitor Flat LCD
Teaching Camera: Yes
Numeric Data Entry: Yes
CAD Download: Yes
Step and Repeat for Matrix Boards: Yes
Bar Code Reader for Feeders & Packaging: Yes
Optimization Functions: Yes
Off-Line Programming: Yes
Mechanical Specifications
X Axis Drive Mechanism: Ball Screw
X Axis Encoding: Rotary
Y Axis Drive Mechanism: Belt with stepping motor
Y Axis Encoding: Rotary
X-Y Axis Resolution: 0.02 mm (0.0008")
Z Axis Resolution: 0.02 mm (0.0008")
Θ Axis Resolution: 0.18°
Θ Axis Range of Motion: 360°
Physical Specifications
Overall Dimensions (Approx. L x W x H): 43.3" x 58" x 58.6" (1100 mm x 1473 mm x 1489 mm)
Approximate Net Weight: 450 Kg (992 lbs.)
Facility Requirements
Standard Voltage: 220 VAC, Single Phase
Air Pressure: 80 psi, 4 CFM
Service and Support
Remote Diagnostics: Ethernet
Warranty (Major Components): 1 Year
