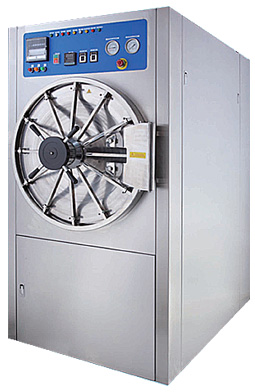

MEDSOURCE TC-750A (floortype) STEAM STERILIZATION AUTOCLAVE

Name: MEDSOURCE TC-750A (floortype) STEAM STERILIZATION AUTOCLAVE
Brand: MEDSOURCE

ManufacturerMEDSOURCE(View more products from this manufacturer)

ModelTC-750A (floortype)

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

External DIA L.W.H. ( cm ): 190x105x196

Chamber Ø x D ( cm ): 75 x 120

Capacity ( Liter ): 530

PowerConsumption ( kw ) :

224kW (

230V 3 PHASES, 380V OR 415V OR 440V 3 PHASES)

Max SterilizationTemperature ( °C ): 134 ± 2

Operate Pressure ( kg/cm² ): 2.2 ± 0.1

Option:

Water filling
Safety door lock by pressure
Dry vacuum (TC-750/TC-615)

Dry vacuum (TC-612/TC-600)
Dry vacuum (TC-500/459/409/406/339/336)
6 Points Temperature record(above TC-500) for floor type

Datasheet

Purpose:

The steam sterilizer is a highly safe sterilizing product with stable function, suitable for major hospitals, clinics and biochemical research laboratories etc., for the sterilization of instrument, cloth, glassware and liquid etc.

The inner chamber is designed to be made of #316 stainless steel, and the outer chamber and the door cover is to be made of #304 stainless steel. The outer layer will be separated by thermal insulation wool for heat preservation. The outside is covered by rectangular stainless steel sheets which provides a more aesthetic appearance and heat preservation.

Stainless steel door with radial lever can effectively lock the door cover tightly and prevent steam leakage Silicone door gasket is high- temperature resistant, durable, and without deformation.

Indicator: Displays the processing status of the sterilization process according to its sequence when the machine is operating.

Practical Sterilization Function:

Preset Vacuum Function is able to shorten the sterilization time.
Vacuum drying function is able to remove unwanted moisture quickly, and to reach the Bowie
Dick t est criteria.
Cloth / apparatus / liquid, Sterilization Functional Switch Mode can be selected to switch
according to different kinds of materials to be sterilized.
Auto Water Supply Device: Electrical control system is able to detect and sense the water
volume automatically. Upon insufficient water volume, it will supply to high water level
automatically. Use equipment for soft water purification can prolong the life cycle of sterilizer.

Safety Devices:

Auto Power-Off Protection Device for water shortage, when water runs out, the electrical control system will automatically cut off the heating power to prevent heating device from overheating, dry-out or even meltdown.
Pressure Controller, the maximum pressure in the boiler is limited to 2.2 ± 0.1kg/cm ². When the pressure reaches the set value, the heating power will be automatically off to prevent the pressure from rising.
Safety Valve, when the pressure reaches 2.8kg/cm ², it will start a rapid exhaust of steam and release the pressure from the chamber.
Pressure Lock, when the pressure of inner chamber exceeds 0.2kg/cm ², the clutch will be locked automatically, and the door cover will not be able to be opened, in order to keep the operator safe.
Safety Switch of Door Cover, when the door cover is opened, the steam in the outer chamber is unable to enter the inner chamber. It cannot be operated normally unless the door cover is closed tightly.

Simple Operation Interface:

Digital LED electronic timer is able to control the working hours of sterilization and
drying precisely within the range of 0~99 minutes
Digital LED electronic temperature controller is able to set the required working temperature quickly, and show the current temperature status of inner chamber. The highest setting temperature is 134°C (218.47 F°)
The temperature recorder can monitor and record the time and temperature during the whole process of sterilization.
The pressure gauge of inner and outer chambers is able to clearly show the current working temperature status of interior of sterilizer.
The opening and closing of turning type door cover is easy to operate.

The highest sterilization temperature is 134°C(218.47 F°), and the pressure value for sterilization is able to reach up to 2.2kg/cm² (2.16 bar or 31.29psi).

Heating device with high power takes 20 minutes to complete sterilization under 121°C, or 15
minutes under 132°C.

The preparation steps for sterilization function shown as following:

Fully-automatic operation-
put the items to be sterilized inside, and close the door cover set mode (Cloth / apparatus / liquid) / temperature/time turn on the power/activate the switch supply water automatically heating preset vacuum for 3 times sterilizing steam exhaust for inner chamber vacuum dryi completion

FunctionsOperating system	Automatic and vacuum drying function
Steam exhaust valve outer chamber	Yes
Dry valve, inner chamber	Yes
Sterilization function	Auto
Timer	99Minutes x 2pcs
Pre-heating function	Yes
Glass & Liquid sterilization function	Yes
Low water indication / cut-off	Yes
Water Level Control & Protection	Yes
Safety door lock activated by pressure	Optional
Chamber material stainless steel #316(standard#304)	Optional
Construction	ST. ST. #304 HOUSING, FRAME, DOOR, CHAMBER AND JACKET
Auto water filling	Optional
Standard Accessories	ST. ST. #304 TRAY x 1PC. VIEWER TUBE x 2PCS.
Control System	PLC CONTROL SYSTEM WITH DIGITAL TEMPERATURE DISPLAY TEMPERATURE CONTROL SYSTEM
Design Temperature	140^oC
Chamber Design	ASME STANDARD
Using Temperature	105^oC-136^oC (0.2-2.3KG/CM²) (211^oF-277^oF) ADJUSTABLE
Dry Function	YES
Electric Voltage	230V 3 PHASES, 380V OR 415V OR 440V 3 PHASES
Optional Accessories	ST.ST.BASKET x 3 PCS TRANSPORTATION CART TRAY SET(TRAY x 2, FRAME x 1)
Pressure Control Switch	YES / 2 PCS
Temperature Control Switch	YES
Pre-Vacuum Function	YES
Dry-Vacuum Function	YES
Temperature Recorder	YES
6 Points Temperature Recorder	CAN BE OPTIONED
Double Door	CAN BE OPTIONED
Sliding Door Construction	N/A
Safety Device	PRESSURE PROTECTION SWITCH, TEMPERATURE CONTROL SWITCH, WATER LEVEL CONTROL SYSTEM, LOW WATER INDICATION/CUT-OFF, SAFETY VALVE, DOOR ALARM, PRESSURE DOOR AUTO-LOCK
Life Time	7 YEARS
