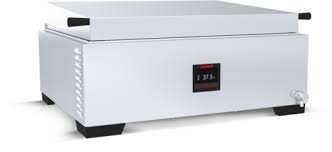

MEMMERT WTB35 Waterbath

Temperature

Temperature sensor: digital temperature sensor, mounted on the outside of the bath

Temperature: Setting Celsius / Fahrenheit

Working temperature range: at least 5 above ambient to +100 (depending on ambient pressure)

Setting temperature range: +10 to +100 °C

Setting accuracy temperature: 0.1 °C

Safety

Temperature control: two-stage safety system to prevent overtemperature

Temperature control: individually adjustable overtemperature alarm, visual and acoustic

Temperature control: Independent temperature limiter to switch off the heating in case of failure

Autodiagnostic system: microprocessor PID-temperature controller with integrated autodiagnostic system with fault indicator

Heating concept

Heating: corrosion-proof large-area heating on the outside of the interior

Ambient conditions

Installation: The vent openings in the left and back side must remain unobstructed. Minimum wall spacing on all sides is 80 mm. The minimum spacing from the top of the bath to the next ceiling is 750 mm.

Ambient temperature: +5 °C to +40 °C

Humidity rh: max. 80 %, non-condensing

Overvoltage category: II

Pollution degree: 2
