Type of battery pack: LiHD
Battery pack capacity: 2 x 5.5 Ah
Battery voltage: 18 V
No-load speed: 7000 rpm
Type of edges: Chamfer and radius
Max. chamfer width 45°: 6 mm
Max. chamfer height at 45°: 4 mm
Possible radii: R2 / R3
Grading of cutting depth setting: 0.1 mm
Curves smallest internal Ø: 13 mm
Weight (including battery pack): 3.1 kg
Noise emission
Sound pressure level: 84 dB(A)
Sound power level (LwA): 95 dB(A)
Uncertainty of measurement K: 3 dB(A)
Delivery
2 x Carbide indexable inserts 45° chamfer
MetaLoc case
2 x Carbide indexable inserts radius R2
2 x Carbide indexable inserts radius R3
Guide Stop
Screwdriver Torx 15
Bow-type handle
Dust protection filter
2 x LiHD battery packs (18 V/5.5 Ah)
Quick charger ASC 145 "AIR COOLED"
Accessories
ACCESSORIES FOR CORDLESS MACHINES
Battery packs, Charger
Datasheet
Features

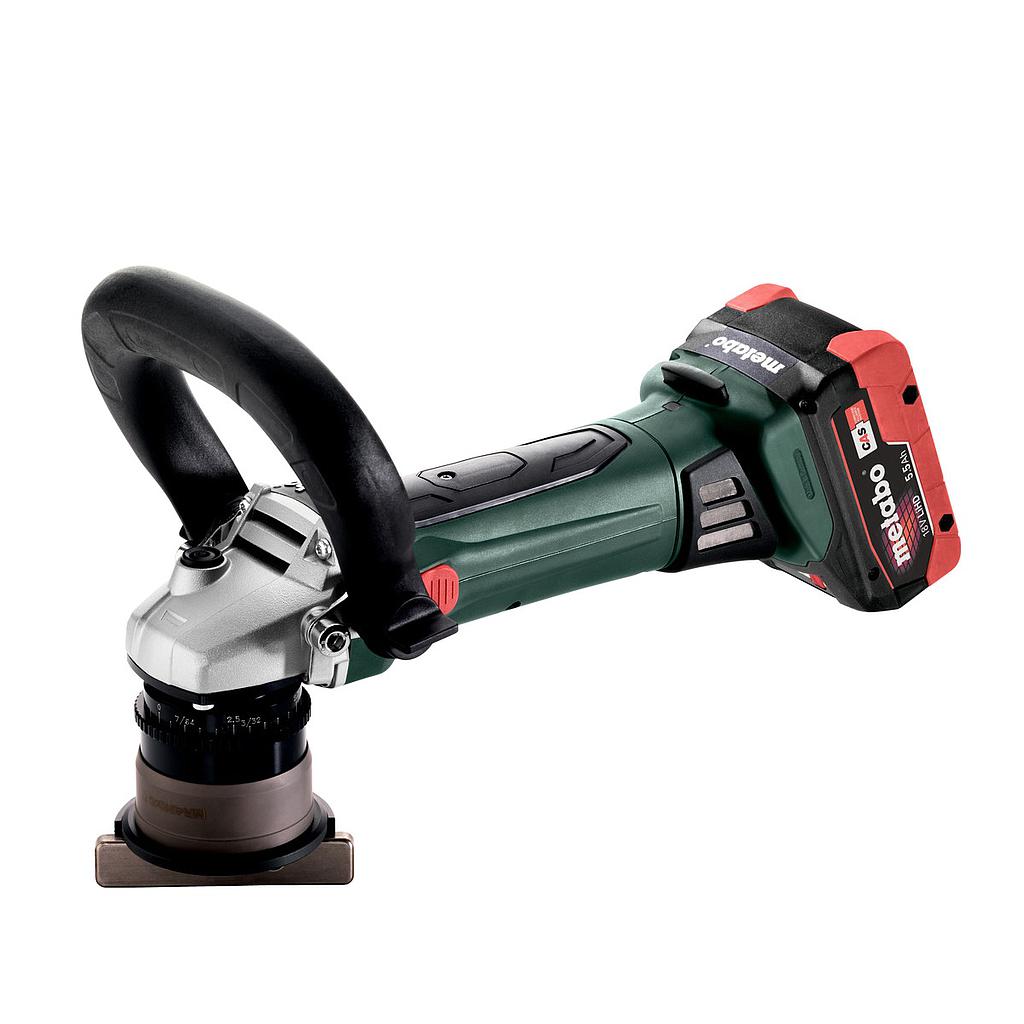

The most powerful cordless metal bevelling tool for 45° chamfers up to 4 mm and radii of 2 and 3 mm
Surfaces free from oxide and burrs as ideal preparation for the application of powder or paint coatings for maximum protection from corrosion
One-touch controller: Patented, tool-free setting of the cutting depth in 0.1 steps; stop points for short setting times, and protection against unintentional adjustment of the cutting depth when working
Slim milling head for working on tubes, on bores from Ø 13 mm, and on exterior contours
Parallel guide / rip fence for a uniform finish when processing straight edges
Battery pack can be swivelled for better access in hard to reach places
Overload protection: protects the motor from overheating
Electronic soft start for smooth start-up
Restart protection: prevents unintentional start-up after battery pack change
Detachable dust protection filter protects motor from coarse particles
LiHD battery pack for ultimate performance, extremely long runtime and service life
Ultra-M technology: highest performance, gentle charging and 3 years of warranty on the battery pack.
