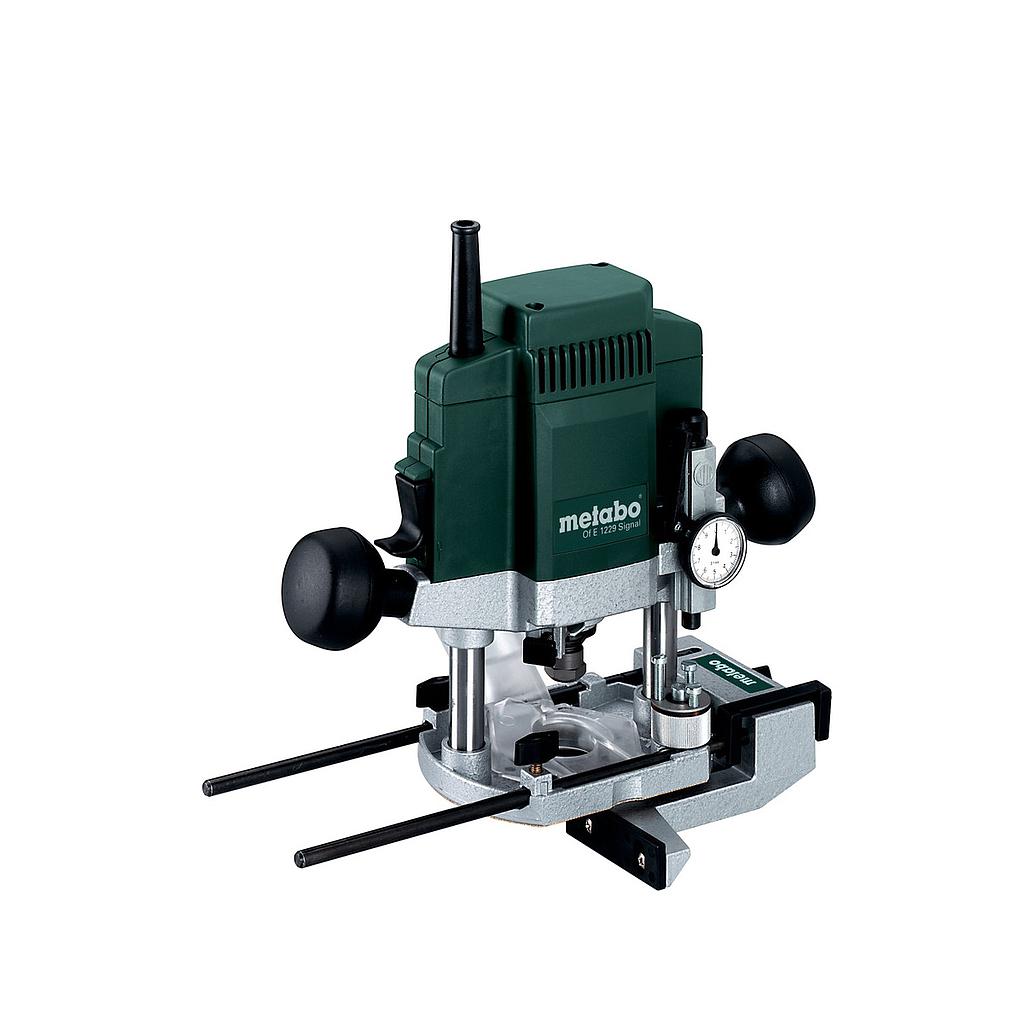

METABO OF E 1229 SIGNAL Routers, Router and Grinder Motor (220-240 V / 50-60 Hz)

Maximum stroke height: 50 mm / 2 "

No-load speed: 5000 - 25500 rpm

Rated input power: 1200 W

Output power: 780 W

Revolutions at rated load: 25500 rpm

Collet chuck bore: 8 mm / 0.315 "

Weight (without power cable): 3.5 kg / 7.7 lbs

Cable length: 4 m / 13 ft

Vibration

Routing MDF: 3 m/s²

Uncertainty of measurement K: 1.5 m/s²

Noise emission

Sound pressure level: 88 dB(A)

Sound power level (LwA): 99 dB(A)

Uncertainty of measurement K: 3 dB(A)

Delivery

Fine adjustment parallel guide/rip fence

Open-jawed spanner

Dial gauge for fine adjustment

Extraction connector

Accessories

ACCESSORY SETS/SPECIALS

Cutter sets

OTHER ACCESSORIES

Accessories for wall chasers, Occupational safety, Accessories for die grinders, Accessories for routers

Datasheet

Features

Dial gauge for fine tuning the moulding/routing depth with 0.1. mm precision

Three-level stop to preselect up to 3 different moulding/routing depths

Robust and torsion-resistant 2-column guide for highest precision

Hardened and ground interchangeable collet chuck for precise concentricity of tools

Spindle lock for easy router bit change

Vario-Tacho-Constamatic (VTC)-Full Wave Electronics for work with materials requiring customised speeds, which remain constant under load

Thumbwheel for Speed Preselection

Overload protection: protects the motor from overheating

Aluminium die cast base plate with coating for easy sliding

Auto-stop carbon brushes to protect the motor

Precise parallel guide/ripping fence guided in prisms with fine adjustment for precise milling

Can also be used on the guide track using an intermediate plate (accessory)

Extraction possibility by means of connecting an all-purpose vacuum cleaner
