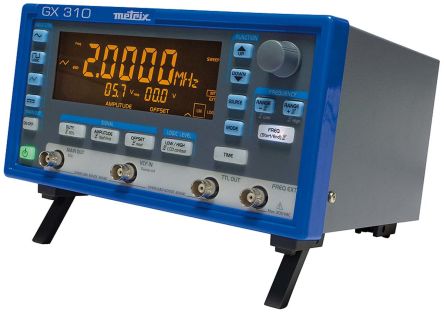

METRIX GX310 pulse generator and frequency transmitter (10Mhz)

Frequency range from 0.001 Hz to 10 MHz (GX310)

• DDS technology with frequency accuracy of ± 20 ppm

• Stable frequency adjustment to the nearest digit

• Simultaneous display of signal parameters (Vdc, Vrms or Vpp, waveform, etc…)

• Large LCD screen (125x45mm) with main display on 5 digits 20mm high

• "LOGIC signal" function for direct adjustment of the high and low levels

• LIN or LOG sweep, triangle or sawtooth, with adjustable duration from 10ms to 100s

• 60Vdc – 40Vac protected inputs and outputs

• 100 MHz frequencymeter, CAT I - 300V

• Automatic "closed casing" calibration on front panel

• Versions programmable via USB link with standard SCPI protocol
