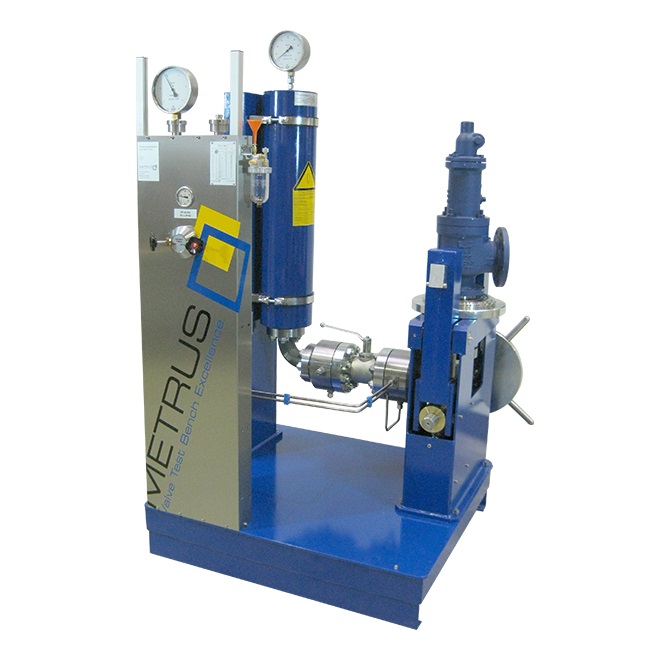

METRUS SV 20/200 PA Test Bench For Safety Valves (20 tons, 15~200mm)

Clamping range: DN15-DN200 1/2’’-8’, Max. test pressure: 300 bar

Clamping force: 20 to

Way of clamping: manual fast clamping system with auto evening, maintenance free

Test fluid: Gas/air (external supply)

Pressure piping: PN600 bar stainless steel

Stainless steel control panel

Bubble counter + rubber plugs

Gauge quick connection for tool free change of gauges

METRUS Precision valves

Isolatable 20 liter accumulator for soft reseating of the Valve

2” Piping to the clamping table

Special needle valves to achieve “PopAction”*

Options:

Gauge Turret for 4 + 1 Gauges

METRUS Free CRS - free of charge computer registration system
