Weight: 44 kg (97 lbs)
Humidity: 10-70% non-condensing

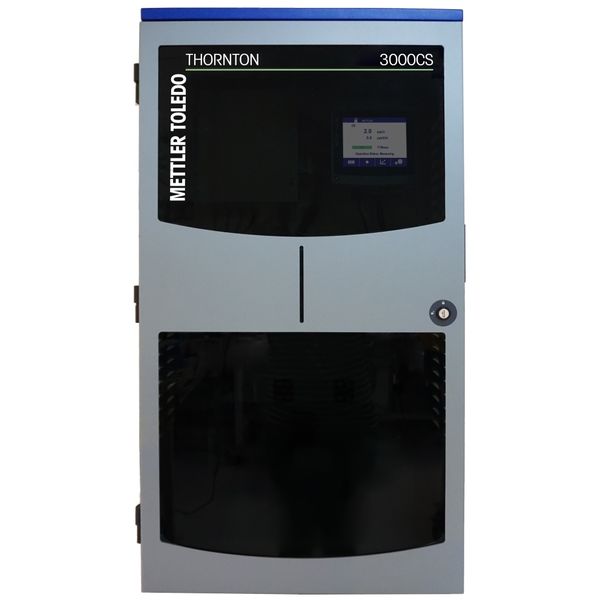

Model Family: 3000CS
Power Supply: 100-240 VAC, 50-60 Hz, 100 W typical
Analog Output: 22mA alarm, 500 ohm max load, not for use with externally powered circuit
EnclosureType: Full
Relay Contacts: Mechanical rated at 250 VAC, 3 Amps (Relay 1 NC, Relay 2 to 4 NO), 4-SPDT Type Reed 250 VAC or DC, 0.5 Amps (Relay 5 to 8)
Sample Pressure: 0.3-7 bar (5-100 psig)
Sample Flow rate: 25-50 mL/min
Ratings/Approvals: CE / cULus
Built-in sequencer: No
Dimensions (HxWxD): 927x508x305 mm (36.5"x20.9"x12")
Operator Interface: Color touchscreen Simultaneous display of ion concentrations and analyzer status
Process Connection: Sample Inlet: 1/4" or 6 mm OD tube SS compressin fitting Drain Hose: 19x25.4 mm (3/4 x 1") 2 m (6 ft) length included
Sample Temperature: 10-45°C (50-113°F)
Analog Output Scaling: Linear, bi-linear, logarithmic (1,2,3,4 decades), auto ranging
Measurement Parameter: Chloride and sulfate
Analog Output Accuracy: ±0.05 mA
Measurement Cycle Time: 45 min typical, programmable between 15 minutes and 1 hour
Grab Sample Measurement: Included 100 mL capacity
Sulfate Measurement Range: 0-300 ppb
Chloride Measurement Range: 0-300 ppb
Sulfate Limit of Detection: 1 ppb
Chloride Limit of Detection: 0.5 ppb
Sulfate Measurement Accuracy: ±10% of reading or ±1 ppb whichever is greater
Ambient Operating Temperature: 10-35°C (50-95°F)
Chloride Measurement Accuracy: ±5% of reading or ± 0.5 ppb whichever is greater
