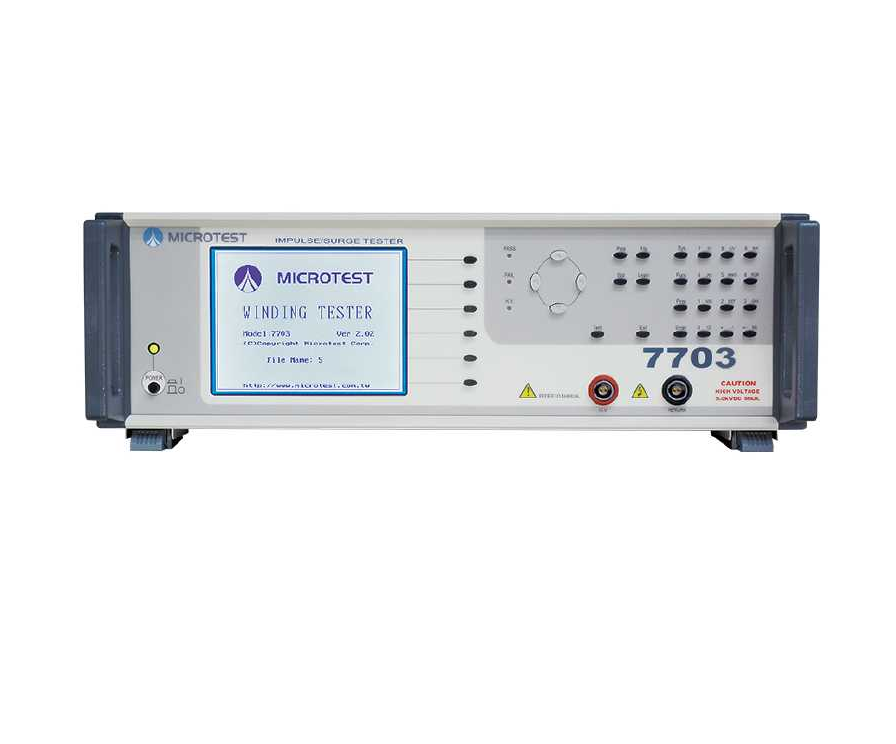

MICROTEST 7703 Impulse Winding Tester (2 channel; 100V-5000V)

Test Channel: 2

Impulse Voltage: 100V-5000V (programmable )

Impulse Voltage Accuracy: ±2%

Lowest Inductance: 0.5uH

Measurement Time: 50mS

System:

PLC Remote Control: Test, Abort

PLC Remote Output Signal: PASS, FAIL, HV Output, Testing

Built-in Storage: 200 sets testing waveform

Power Supply: Voltage：98Vac-132Vac or 192Vac-264Vac ; Frequency：50/60Hz ±5%

Power consumption: 85VA

Environment: Temperature：10℃-40℃; Humidity：20-90%RH

Dimension: 435x145x522 mm (W*H*D)

Weight: 8 Kg

Interface: RS-232, Remote, Printer

Display: 5.7" dot-matrix (300*240 )
