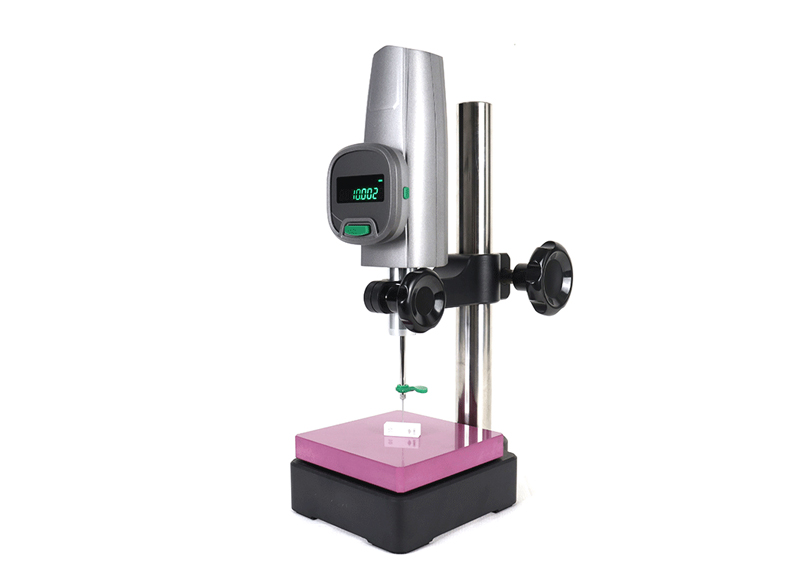

Measurement: 0-50 mm
Accuracy(20℃): ≤3μm
Repeatability(20°C): 1μm
Minimum Readout: 1μm
Response Speed: Max 5000mm/s
Measuring Force: 0.8-1.2N
External Output: USB
Displayer: 7bits High Brightness Green LED
Probe: Ball, Flat, Conical
Unit: mm/inch
Operating Environment:
- Temperature:0-40℃
- Humidity:20-80%
Table Size: 130x130mm
Power Adaptor: AC:100-240V 50/60Hz, Output: DC 5V/1A
Standard Accessories: Stand, Ball Tip, Flat Tip, Conical Tip
Optional Accessories: Special-shaped Tips, Low Measuring Force Device, Portable battery, Foot Switch
Size: 200x138x397 mm
Weight: 11.6kg
