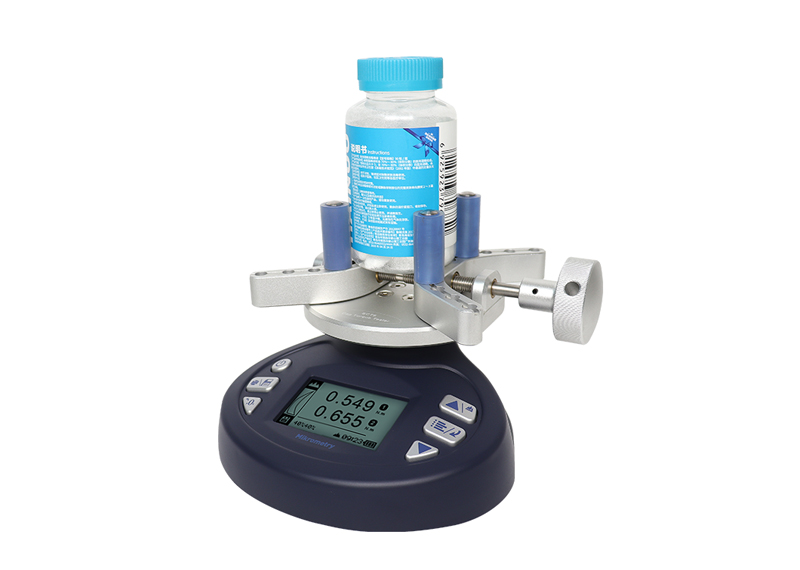

Mikrometry ECT5 Bottle Cap Torque Tester (0.25~5 / 0.0005 N*m)

Capacity/Resolution: 0.25~5 / 0.0005 N*m; 25~500 / 0.05 N*cm; 2.5~50 / 0.005 kgf*cm; 0.18~3.7 / 0.0005 lbf*ft; 2.2~44.3 / 0.005 lbf*in

Measuring Range: 5%~100% capacity

Accuracy: ± 0.3% reading

Clamping Range: Φ19.5 ~ Φ190

Units: N·m, N·cm, kgf·cm, lbf·ft, lbf·in

Display: 240x160 dot matrix LCD(3.1 inch) with LED Backlight

Overload: 120% F.S.

Display Mode: Digital/Curve

Measuring Mode: Track, Peak, AutoPeak, Auto FirstPeak,Double Peak

Sampling Rate: 16 kHz(max.）

Memory: 1000 data

Outputs: RS-232, "Within" set point output, "Under or over" set point output

Power: 3.6VDC Ni-MH rechargeable batteries; Universal USB charger, Input:100~240VAC

Dimension: 197X200X142 mm

Weight: ~ 2.5 kg
