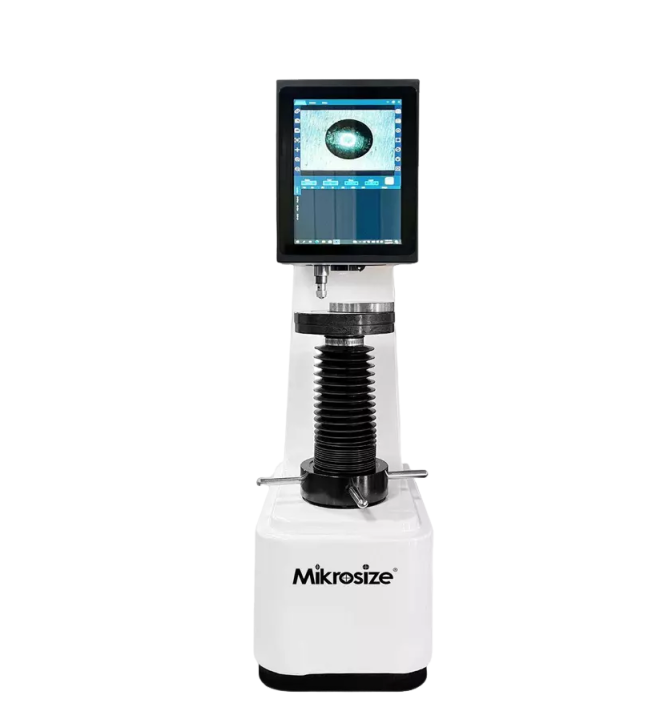

Model: iBrin-3000SA2 (1 Indentor+1 Objective Lens)
Test Range: 8~650HBW
Test Force: 62.5kgf, 100kgf, 125kgf, 187.5kgf, 250kgf, 500kgf, 750kgf, 1000kgf, 1500kgf, 3000kgf
612.9N, 980.7N, 1226N, 1839N, 2452N, 4903N, 7355N, 8907N, 14710N, 29420N
Hardness Scale:
HBW2.5/31.25, HBW2.5/62.5, HBW2.5/187.5
HBW5/31.25, HBW5/62.5, HBW5/125, HBW5/250, HBW5/750
HBW10/100, HBW10/125, HBW10/250, HBW10/500, HBW10/1000, HBW10/1500, HBW10/3000
Conversion Scale: HRA, HRB, HRC, HRD, HRF, HV, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T
Indenter: Φ2.5mm、Φ5mm、Φ10mm
Camera Lens: 20X
Objective Lens: 1X
Test Height: 280mm
Test Throat: 150mm
Dewelling Time: 0~99s
Hardness Reading: Read the hardness value on the digital display touch - screen LCD.
Turret: Automatic
Communication Interface: USB、RJ45LAN、WLAN、RS232
Power Supply: AC220V,50Hz
Dimensions: 230*600*920mm
Net Weight: 130kg
Standard Delivery:
Mainframe: 1 pc
Φ230mm Test Anvil: 1 pc
Φ78mm Test Anvil: 1 pc
60*90mm V-shape Test Anvil: 1 pc
Φ2.5mm Brinell Indentor: 1 pc
Φ5mm Brinell Indentor: 1 pc
Φ10mm Brinell Indentor: 1 pc
Φ2.5mm、Φ5mm、Φ10mm Hard Alloy Ball: Each 1 pc
HBW10/3000 Hardness Block: 1 pc
HBW10/1000 Hardness Block: 1 pc
1X Objective Lens: 1 pc
2X Objective Lens: 1 pc
