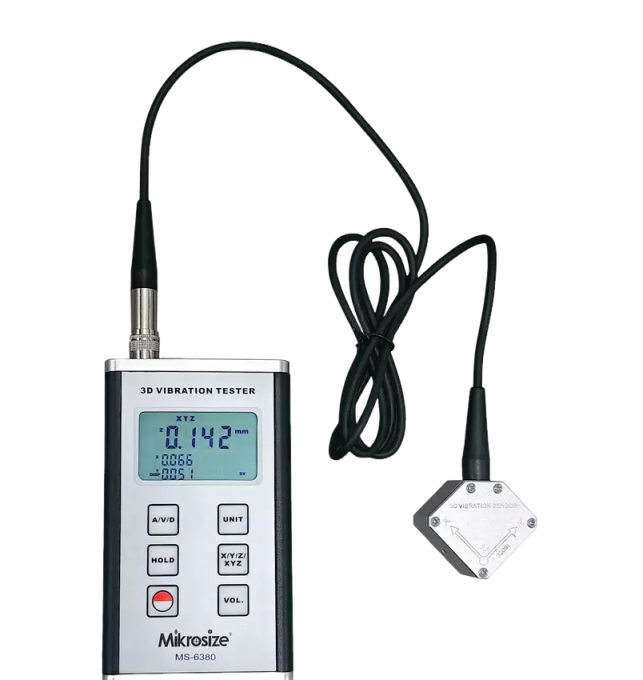

Vibration Sensor: 3-Axis Piezoelectric Accelerometer
Display: 4 Digit LCD Backlit
Axial Vibration: Any One Axis Of X , Y, Z Or 3 Axes Of XYZ
Accuracy: ±(5%n+2) Digits
Measurement range:
Displacement: 0.001-4.000mm Equivalent Peak-Peak; 0.04-160.0 mil
Acceleration: 0.1-400.0 m/s Equivalent Peak; 0.3-1312 ft/s; 0.0-40g
Velocity: 0.01-400.0 mm/s True RMS; 0.04-16.00 inch/s
Frequency Range:
Displacement: 10Hz. ~ 1kHz.
Acceleration: 10Hz. ~ 10kHz
Velocity: 10Hz. ~1kHz.
Analogue Output: AC Output 0~2.0V Peak Full Scale(Load Resistance: Above 10k)
Pc Interface: RS232C ( Cable And Software Is Not Included)
Power Off: Manual Off At Any Time Or Auto Power Off Is Enabled By User
Operating Temperature: 0-50 °C
Humidity: Below 95% RH
Power Supply: 2x1.5vAA (UM-3)Battery
Size: 130x70x30mm
Weight: 305g (Not Including Batteries)
Standard Delivery
Powerful Rare Earth Magnet: 1pc
3 Piezoelectric Accelerometers In 1 Sensor: 1pc
Stinger Probe (Cone): 1pc
Stinger Probe (Ball): 1pc
Carrying Case: 1pc
