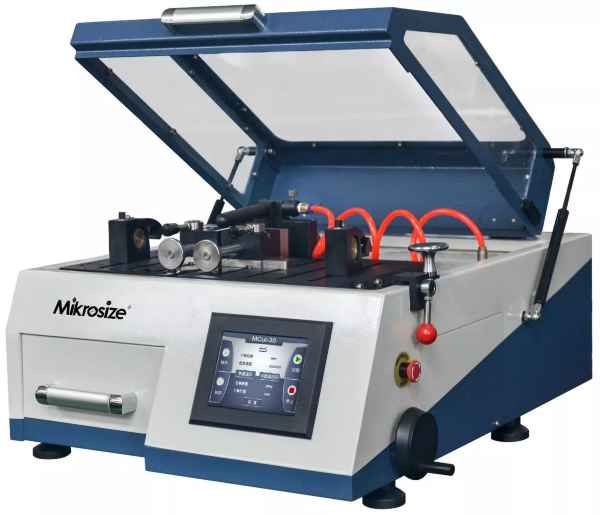

Mikrosize MCut-30 Manual/Auto Precision Metallographic Cutter (500-3000r/min; 1,2kW)

Cutting Method: Manual / Automatic,

Feeding Method: Spindle feeding or Stage feeding

Feed Speed: Manual /Automatic 1-36mm/min(Step 0.1mm/min)

Cut-off Wheel: Φ180×0.8×Φ22mm

Max. Cutting Capacity: Φ30mm

Max. Travel: Spindle travel 140mm, Stage Travel 230mm

Spindle Speed: 500-3000r/min

Motor Power: 1.2kW

Cutting Stage: 245×415mm，T-slot 8mm

Clamping Tool: Quick clamp，Jaw height 45mm; Vertical clamp, Opening 27mm

Control and Display: 5.7 inch Touch Screen

Power Supply: 220V, 50Hz,8A

Pump Flow: 16L/min

Machine Dimensions: 620×740×380mm

Net Weight: 80kg

External Water Tank Capacity: 36L

Water Pump Flow: 12L/min

Water Tank Dimensions: 300x500x450mm

Water Tank Net Weight: 20Kg

Standard Delivery

Machine Mainframe: 1 set

Diamond cut-off wheel: Φ180×0.8×Φ22mm: 1 pc

Cutting Fluid: 3kg: 1 bottle

Spanner: 22mm，14×17mm: each 1 pc

Inner Hexagon Spanner: 4mm: 1 pc

Vertical Clamp Spanner: 1 pc

Power Cable: 1 pc

Instruction Manual: 1 copy

Outlet Water Pipe: Φ32mm: 1 pc

Inlet Water Pipe: 1.5m Length: 1 pc

Product Certificate: 1 Copy
