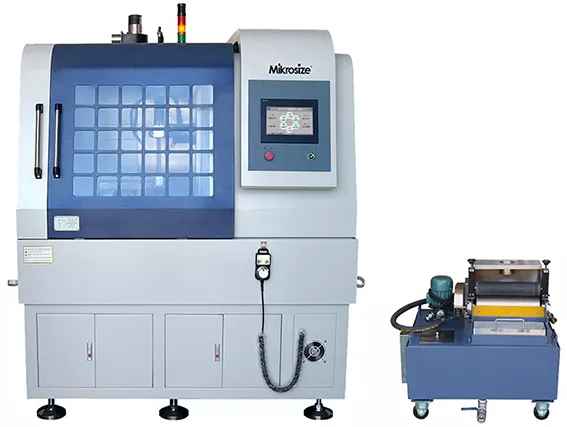

Mikrosize MCut-300A Auto Metallographic Abrasive Cutter (Ø400xØ32x3, 7.5kW)

Cutting Capacity (mm): 300x150

Function: Automatic Gas Exhaust System, Alarm System, Dual LED Lighting, Infrared Laser Positioning

Cutting Method: Manual / Automatic X/Y/Z- axis Linkage

Control System: 10 inch Touch Screen /Operating Handle-wheel

Cut-off Wheel Dimension (mm): Ø400xØ32x3

Cutting Feeding Speed: 1~200mm/min

X*Y Cutting Table Dimension (mm): 530x630

Y-axis Travel (mm): 420

Z-axis Travel (mm): 230

X-axis Travel (mm): 110

Clamp Opening (mm): 300

Spindle Motor

Power: 380V,50HZ,7.5kw

Speed: 500-2800r/min

Feeding Motor: Stepping Motor

Machine Dimensions (mm) (L×W×H): 1650*1350*1900

Net Weight (kg): 2500

Machine Power Supply: 3 Phases,5 Lines 380V 50HZ

Packing List

Machine Mainframe: 1 set

Water Tank: 80/120L: 1 set

Clamping Device: 100/120/200/300mm: 1 set

Cut-off Wheel: 46#, 41#: 2 pieces

Water Pipe: Ø350/380/400×2.5/2.8/3×Ø32 mm: 2 pieces

Usage Instruction: Ø 3/4 inch, Ø 2 inch: Inlet 1 piece,Outlet 1 piece

Manual: 1 Copy
