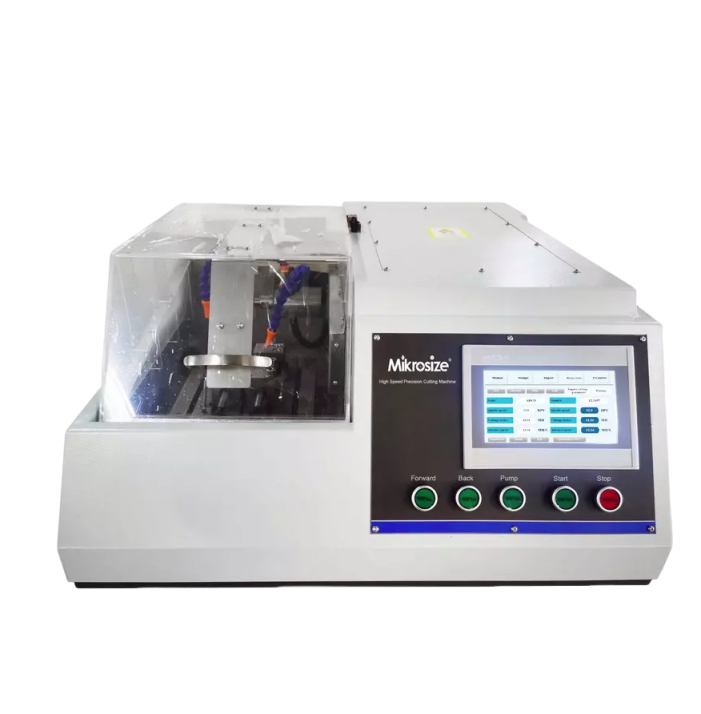

Mikrosize uCut-60 Metallographic Precision Cutter (High Speed) (500-3000r/min; 0.01- 3 mm/s, Ø200 x 32 x0. 9mm)

Cut-off Wheel: Standard Size φ200 x 32 x0. 9mm, Diomond/CBN/Resin

Spindle Speed: 500-3000r/min (Optional 500-5000r/min) Adjustable

Feeding Speed: 0.01- 3 mm/s

Manual Feeding Speed: 0-5mm/s

Backward Speed: 0-5mm/s

Impact Cutting Distance: 0.1- 2 mm

Cutting Stroke (Y-axis): 200mm

X-stage Movement(uCut-60X): Precision:0.01mm, Range:40mm

Maximum Cutting diameter: Φ60 mm

Cutting Table Size: 216x240mm(X*Y)

Maximum Clamping Length of Fixture: 150mm

Maximum Clamping Width of Fixture: 215mm

Servo Motor: 1.5 kw

Usage Method Data: 12 kinds can be Stored

Power supply: AC220V 50HZ

Mainframe Dimensions: 750 * 870 * 455 mm

Net Weight: 126KG

Standard delivery：

Open end spanner (22-24, 17-19): Each 1

6mm inner hexagon wrench: 1

5mm inner hexagon wrench: 1

Power cord: 1

Φ200mm Diamond Cut-off Wheel: 1

Cooling system (including water tank, water pump, water inlet pipe and drainage pipe): 1 set

1L Cutting fluid: 1 bottle

Hose hoops 13 to 19: 2

Hose hoops 40-63: 2

External Water Tank: 1
