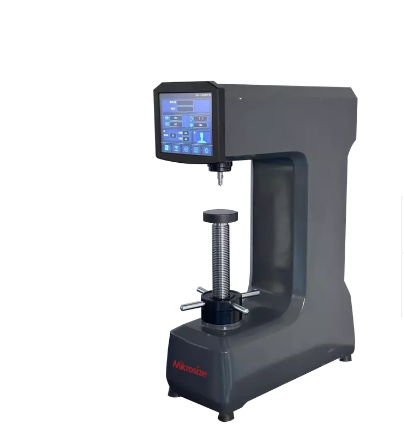

Test Force: 20、40、60、100 KGF
Testing Range: 30-110HR
Indentation Head Types: 2.5mm, 5mm, 10mm(diameter)
Testing Space
Max Test Height: 230mm
Test Throat: 170mm
Test Force Application Method: Main initial test force: Automatic (loading, holding, and unloading are fully automated)
Testing Scale: HRA,HRBHRC,HRD,HRE,HRF,HRG,HRH,HRK,HRL,HRM,HRP,HRR,HRS,HRV
Conversion Scale: HRA,HRB,HRC,HRD,HRF,HV,HK,HBW,HBS,HR15N,HR30N,HR15TW,HR30TW,HR45TW
Hardness Value Display Method: 8-inch touchscreen display (computer display optional)
Hardness Resolution: 0.1HR
Power Supply: AC 220, 50/60 Hz
Executive Standard:
DIN 51917-2002 Carbon material inspection hardness test
JBT 8133.3-2013 Test methods for physical and chemical properties of electric carbon products
Packing List:
Machine Mainframe: 1 unit
2.5mm, 5mm, 10mm Steel Ball Indenter: 1 pc for each
Φ1.588mm Ball Indenter: 1pc
Φ60mm Test Platform: 1pc
Φ150mmTest Platform: 1pc
Φ40mm V-shape Test Platform: 1pc
Rockwell Hardness Block 88-95HRB: 1pc
Wrench: 2pcs
Printer: 1pc
Dust Cover: 1pc
Power Adapter: 1pc
Power Cord: 1pc
Instruction Manual: 1 copy
Product Certificate,Warranty Card: 1 copy for each
Product Feature:
This machine uses electronic loading test forces instead of weights, enhancing the accuracy of force values and ensuring more stable measurements.
An 8-inch touchscreen for operation and display, offering a user-friendly interface to complete instrument settings.
Bluetooth connection to the computer allows for data analysis and management through dedicated hardness software.
Powerful data processing capabilities allow for the calculation and analysis of maximum, minimum, average values, and more.
Touch screen selection for various Rockwell hardness scales, with the ability to convert between multiple hardness scales such as HV, HB, etc.
The operation interface is simple, with user-friendly parameter settings. The main unit independently stores up to 500 sets of data.
Comply with the latest ISO, ASTM, GB standards for scale conversion.
The initial load holding time and loading time can be freely set, along with functions such as hardness value correction.
Product Application:
Measures the Rockwell hardness of carbon brushes and electrocarbon products.
Especially suitable for precise measurement on parallel surfaces and provides stable and reliable measurements on curved surfaces.
