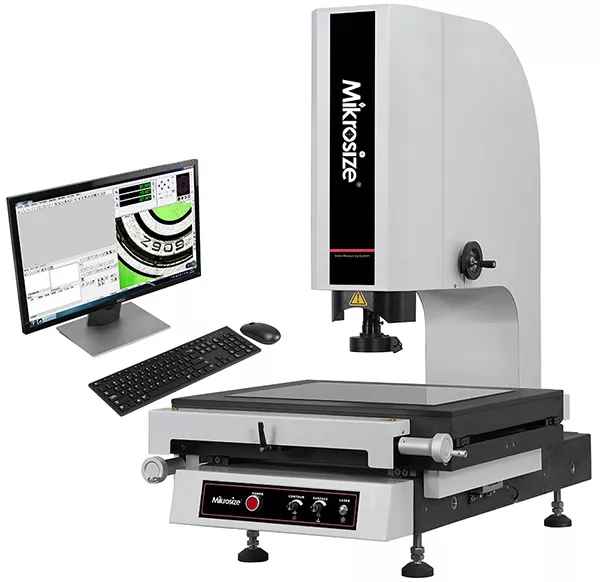

Mikrosize VMA-4030P Manual Video Measuring Machine (3D, XY 400x300mm)

Dimensions（mm）: 1000X620X990

Net Weight(KG):180

X,Y-axis Accuracy(μm): 2.5+L/100

Loading Weight of Working Stag: 25kg

Image Sensor: TEO 1/3’’Colorful CCD Camera

Objective Lens: Manual Position Zoom Lens

Video Total Magnification: Optic Zoom Lens:0.7~4.5x, Objective Lens:20~148x

Resolution: 0.5μm

Working Distance(Standard): 92 mm

Object View: 8.1mm～1.3mm

Movement System: X,Y-axis:Polish Rod, Z-axis:T-type Screw Rod

Data Processor: RS-100

Illumination: Surface:8-division LED Cold Light / Contour:Adjustable 256-grades LED Cold illumination

Measuring Software: Microsize

Working Environment

Temperature: 20℃±2℃, Temperature Variation<2℃/hr,Humidity:30~80%

Vibration<0.002g,15Hz

Power Source: AC 100~220V, 50/60HZ, 10A

VMA Manual Video Measuring System Packing List:

Mainframe/Dell PC System

Zoom Lens 0.7X—4.5X

LED Light Source

RS-100 Data Processor

1/3" CCD Camera

Microsize Measuring Software

Linear Scale

Calibration Block/Capture Card

Instruction Manual/Anti-dust Cover

Z axis High Precision Linear Guide Rail

100mm Length Block(3D)

Renihshaw Probe(3D)
