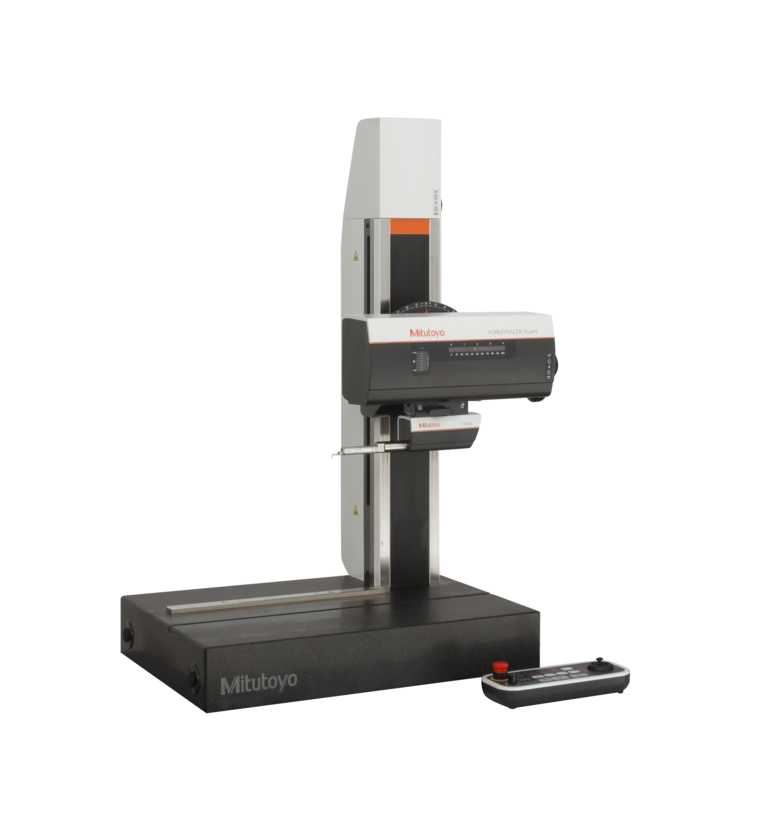

MITUTOYO FTA-S4S3000 Surface Texture Measuring Instrument (X=100mm; Z2= 300 mm)
Manufacturer: MITUTOYO Model: FTA-S4S3000 - Contact
Measuring range:
X axis: 100 mm
Z1 axis: 800 µm, 80 µm, 8 µm
Straightness (when the X axis is horizontal): (0.05+0.001L) µm L = Measurement Length (mm)
X-axis inclination angle: ±45° (Only for models with X-axis inclining drive unit)
Z2-axis (column) travel range: 300 mm
Base size (W×D): 60×450 mm
Base material: Granite
