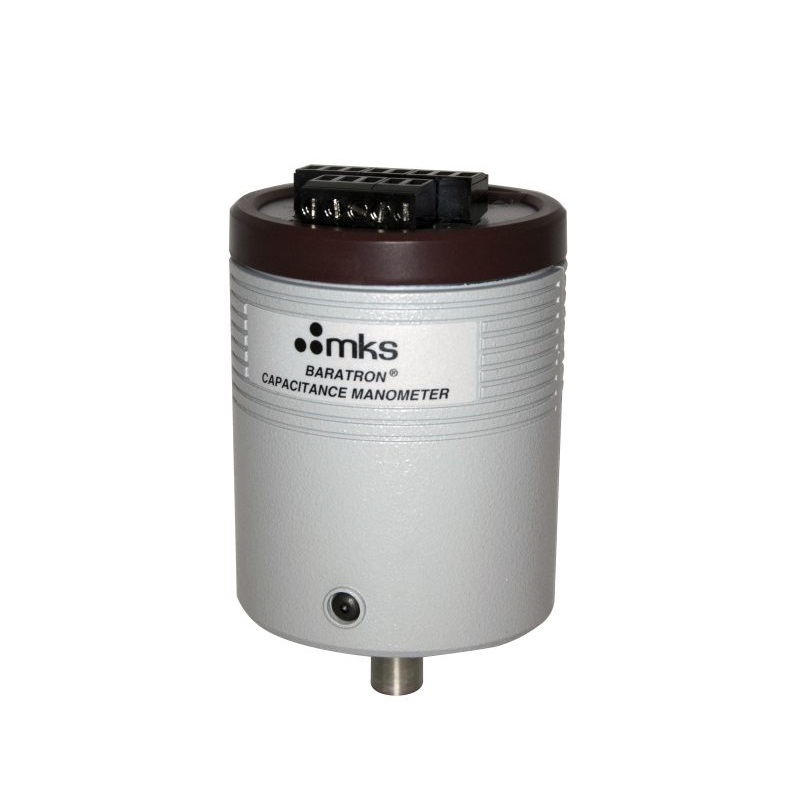

MKS 623H Unheated Absolute Baratron® Capacitance Manometer (10 Torr; 8 VCR-F)

Measurement Type: Absolute

Full Scale Range: 10 Torr

Sensor Temperature: Ambient

Fitting Type: 8 VCR female

Analog Output: 0-10 VDC

Accuracy: 0.25% of Reading

Electrical Connector: Terminal block

Zero Temperature Coefficient: 0.005% of Full Scale/°C

Span Temperature Coefficient: 0.04% of Reading/°C

Operating Temperature Range: 0-50°C

Resolution: 0.001% of Full Scale

Volume: 6.3 cc

Overpressure Limit: 45 psia (310 kPa)

Exposed Materials: Incoloy® and Inconel®

Warm-up Time: 30 minutes

Trip Points: 2

Trip Point Relay Rating: SPDT, 1 Amp @ 30 VDC or 0.5 Amp @ 30 VAC resistive

Power Requirements: ±15 VDC ±5% @ 75 mA

Compliance: CE

For specific range please check the attachment below!
