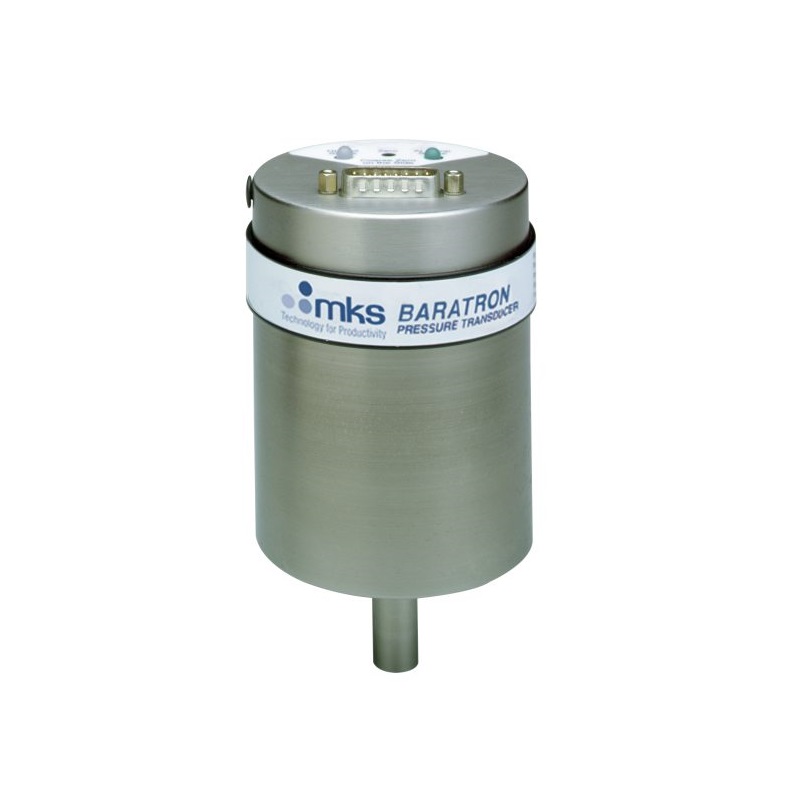

MKS 624H Heated Absolute Baratron® Capacitance Manometer (1 Torr; 45°C; 8 VCR-F)

Measurement Type: Absolute

Sensor Temperature: 45°C

Full Scale Range: 1 Torr

Accuracy: 0.12% of Reading

Resolution: 0.001% of Full Scale

Fitting Type: 8 VCR female

Analog Output: 0-10 VDC

Analog Connector: 15-pin D-sub with Thread Locks

Zero Temperature Coefficient: 0.002% of Full Scale/°C

Span Temperature Coefficient: 0.02% of Reading/°C

Operating Temperature Range: 15-40°C

Volume: 6.3 cc

Warm-up Time: 2 hours

Overpressure Limit: 45 psia (310 kPa)

Exposed Materials: Inconel

Power Requirements: ±15 VDC ±5% @ 0.40 Amps (max.)

Trip Points: 2

Trip Point Level Signal: 0.01-10 VDC for each trip point

Relay Contact Ratings: SPDT, 1 Amp @ 30 VDC or 0.5 Amp @ 30 VAC resistive

Compliance: CE

For specific range please check the attachment below!
