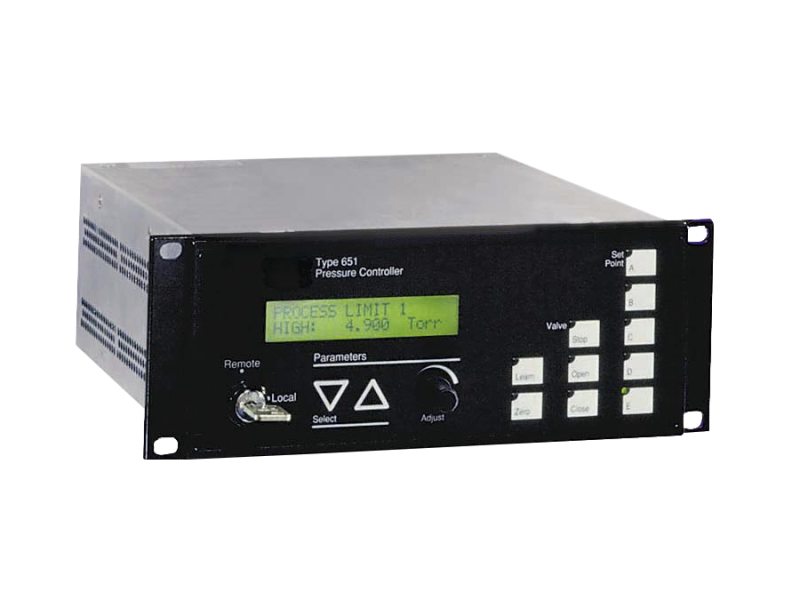

MKS 651CD2S2N Digital/Analog Pressure Controller (1.5 Amps)

Type: 651C Digital/Analog Pressure Controller

For Use With: 653 or 253 Exhaust Throttle Valves

Power Input: 90-132 or 180-264 VAC, 50/60 Hz

Power Output: ±15 VDC ±5% @ 1.5 Amps max.

Output/ Input Signal: 0 - 5 or 0 - 10 VDC for 0 - 100% valve position and 0 - 10 VDC for 0 - 100% Full Scale pressure

Set Points: 5

External Analog: 1; pressure or position, 0-5 or 0-10 VDC

Relay Output: 2, process limits: 24 Volts VDC @ 1 Amp resistive

Repeatability: ±0.1% of Full Scale

Operating Temperature: 15 - 40°C (60 - 104°F)

Display: 2-line LCD with 4-1/2 place readout

Display Units: Torr, mTorr, mbar, Pascal, cmH2O, inH2O, µbar, kPa

User Interface: Front panel, Analog, TTL (16 inputs, 6 outputs) and RS-232

Connectors: Valve: 9-pin type D female

                    I/O: 37-pin type D female

                    Transducer: 15-pin type D female

                    RS232: 9-pin type D male

Dimensions: Half-rack packaging: 3.5 x 9.5 x 9 in. (height x width x depth)

Controls: Self-tuning Unit, PID Control, Remote Zero, Remote Control Override (Open, Close, hold), Position Control Capability
