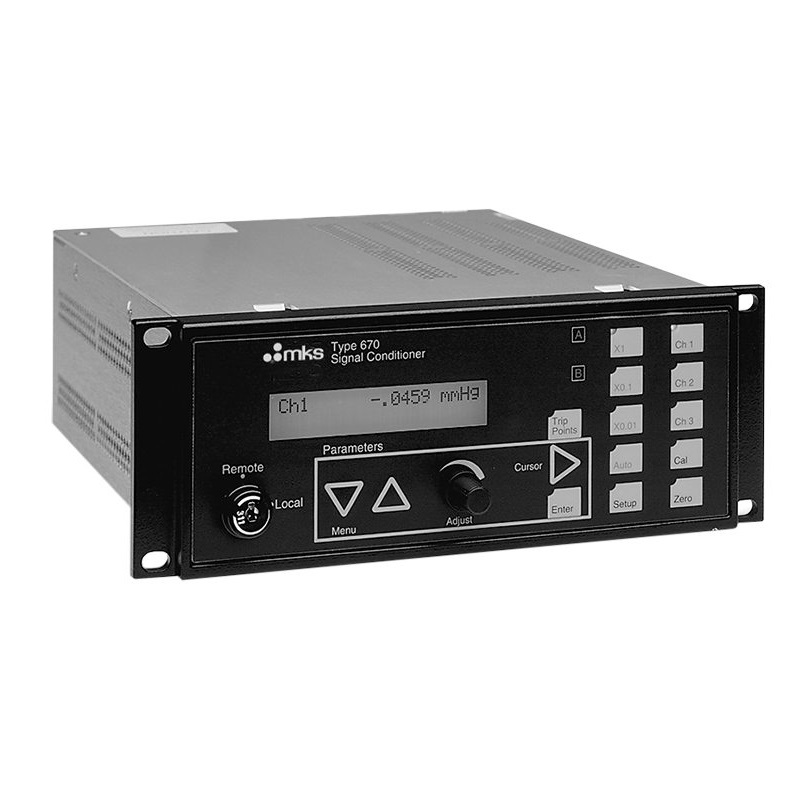

MKS 670C Power Supply and Display with Signal Conditioner (90-132/180-264VAC, 50-60Hz; RS232)

Display: 3½, 4½, or 5½ digits, 2-line LCD

Display Units: Torr, mTorr, mmHg, mbar, Pa, kPa, inHg, inH20, cmH20, psi, % of Full Scale, ppm of Full Scale (all user-selectable)

Number of Channels: 1

Power Requirements: 90-132 or 180-264 VAC, 50-60 Hz, 75 VA (max.) IEC-AC power line connector

Output Signal: 0 to ±10 VDC on each range into >10K Ω load

Communication Protocol: RS232

Connectors: DB9 male

Trip Point Relay Ratings: 24 VAC/DC @ 1 Amp resistive

For Use With: AA06A & AD06A sensors from 0.1 - 25,000 mmHg (Torr) Full Scale

                      also: 590, 615, 616, 690, 698 sensors

Ranges: x1, x0.1, x0.01 of sensor Full Scale, manual or auto-ranging

Response Time: 1, 40, or 400 msec (user-selectable)

Operating Temperature: 15 - 40° C

Dimensions: 88 mm x 240 mm x 234 mm

Compliance: CE

For specific range please check the attachment below!
