Autoranging: Swithces to higher display range above 1.95 Sun, lower range below 1.90 Sun
Resolution: Irradiance: 0.0001 Sun @ 0-1.9500 Sun (low display range), 0.001 Sun @ 1.900-3.500 Sun (high display range)
Temperature: 0.01 °C
Sampling Rate: 2 readings/sec
Settling Time: within 1 sec for <0.25% (= 6τ)
RangeIrradiance: 0-3.500 Sun
Temperature: 0-199.9 °C capable
Operating Temperature Range: 10-40 °C
Operating Humidity: 0-90% relative humidity, non-condensing

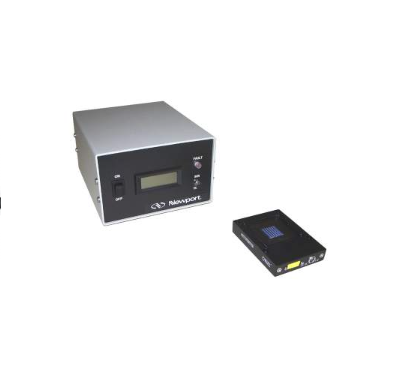

Electrical Interface: Type K connector for thermocouple integrated beneath the PV reference cell
Amphenol T 3302 009 4-pin connector for reference cell 4-wire interface
Analog output BNC jacks for Sun and temperature output
Dimensions: Meter: 151 x 95 x 178 mm
Reference cell: 70 x 16 x 92 mm
Weight: 1.8 kg (meter)
