Absolute Measurement Range: 1.0 x 10-5 to 760 Torr
Digital Communication: RS232

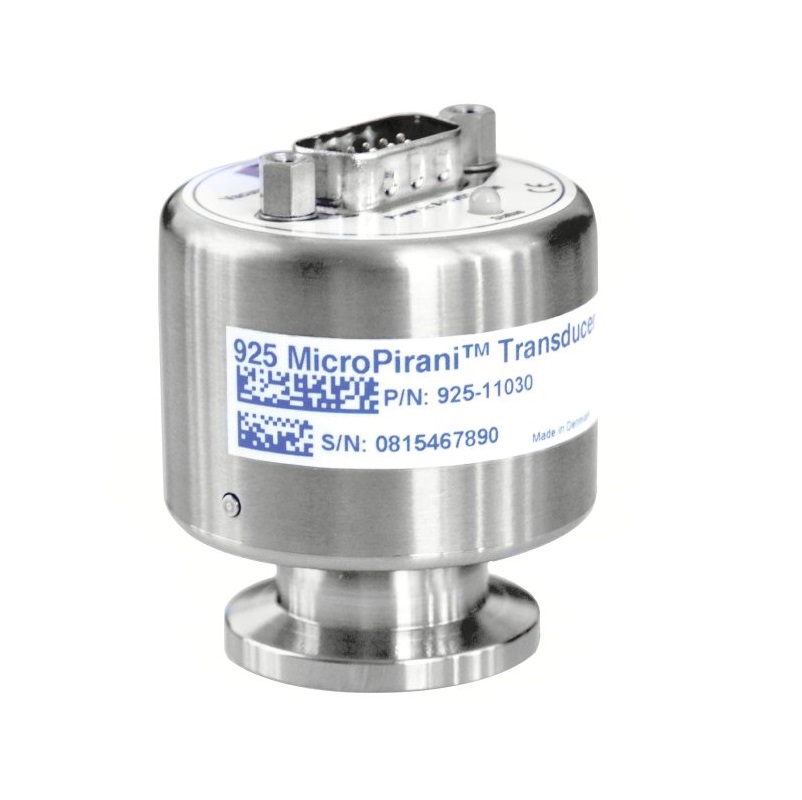

Type: Vacuum Transducer
Sensor: MicroPirani (MEMS Thermal Conductivity)
Display: No
Seal Material: Viton
Electrical Connector: 15-pin, High Density, D-sub male
Interface: RS232/analog
Relays: 3
Fitting Type: NW16 ISO-KF
Installation Orientation: Any
Set Point Range: Absolute: 5.0 x 10-4 - 500 Torr
Calibration Gas: Air, Argon, Helium, Nitrogen, Hydrogen, H2O vapor, CO2, Xenon, Neon
Operating Temperature: 0 - 40°C (32 - 104°F)
Maximum Bakeout Temperature: 85°C (185°F)
Analog Output: 1-9 VDC (1 VDC per Decade)
Analog Output Resolution: 16 bit
Relay Contact Rating: 1 Amp @ 30 VAC/DC, resistive
Relay Response: <100 msec maximum
Power Requirements: 9 - 30 VDC, <1.5 Watts maximum
Accuracy: 5 x 10-4 to 10-3 Torr ±10% of Reading, 10-3 - 100 Torr ±5% of Reading, 100 Torr to Atmosphere ±25% of Reading (typical)
Repeatability: 10-3 to 100 Torr ±2% of Reading (typical)
Overpressure Limit: 3000 Torr (absolute)
Exposed Materials: 304 stainless steel, Silicon, SiO2, Si3N4, Gold, Viton, Low out gassing epoxy resin
Electronic Casing and Flange: 304 stainless steel
Compliance: CE
Digital Baud Rates: 4800 - 230400 Baud
