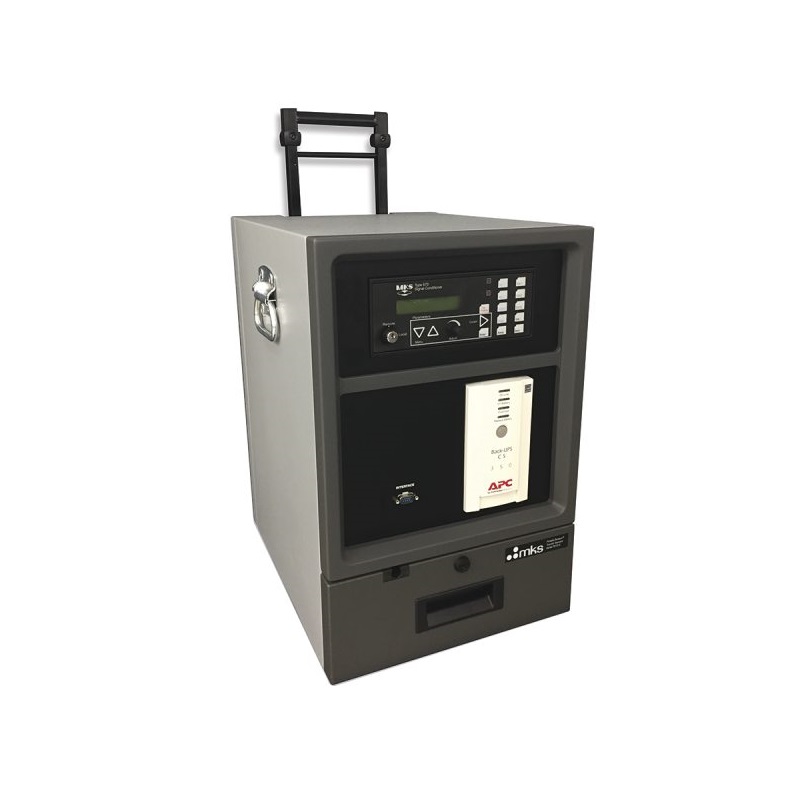

MKS PBTS1B Portable Baratron® Transfer Standard (0.1~25,000 Torr)

Transfer Standard: AA06A Absolute Sensor (NIST traceable)

Accuracy:

- Standard: 0.08% of Reading (±temp. coefficients)

- Optional: (for 1-1000 range) 0.05% of Reading (±temp. coefficients)

Resolution: 1 x 10^-6  of Full Scale

Fitting Type: 4 VCR® female

Operating Temperature: 15-40°C

Readout: 5½-digit LCD (670C)

Power Requirements: 110 VAC, 60 Hz; 220 VAC, 50 Hz; 100 VAC, 50/60 Hz; 3A

Warm-up Time: 4 hours. However, use of the internal 280 VA UPS will keep the transfer standard warmed up and ready for immediate use for at least 60 minutes.

Enclosure: Metal wheeled caddy with extendible handle and tilt stand

Weight: 75 lbs (34 kg)

Configuration: Removable transfer standard (10 ft./3m cable with 4 VCR female transducer fitting)

For specific range please check the attachment below!
