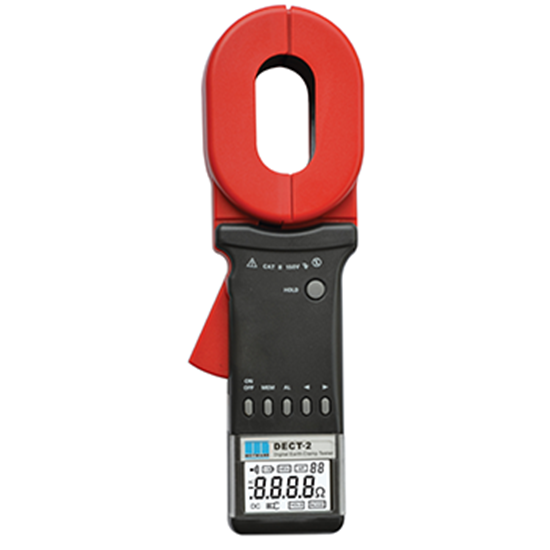

MOTWANE DECT-2 Clamp meter (0.01 Ω~1200 Ω)

Manufacturer: MOTWANE

Model: DECT-2

Origin: India

Warranty: 12 months

Display: 4 digit LCD , 47 mm X 28.5 mm

Resistance Measurement Range: 0.01Ω to 1200Ω

Memory Storage Facility: 99 records

Single Measurement Time: 0.5 Second

Resistance Measurement Frequency: > 1 KHz

Sound & Light annunciator: Beep sound, Flashing symbol

'AL' key to turn on-off & setting the sound & Light alarm

Selection range of resistance for setting alarm value: 1 – 199Ω

Protection Level: Double Insulation

External Magnetic Field: < 40 A/m

External Electric Field: < 1V/m

Power Source: 6VDC (4x1.5 V AA alkaline battery)

Auto Power Off: approx 5 minutes

Environmental Working Temperature: 0°C to 50°C

Relative Humidity : 10% to 90%

Jaw Size: 65mm X 32mm

Net Weight (Including Batteries): 1160 gms

Dimension (L x B x H): 285mm x 85mmx 56mm

Resistance:

0.010- 0.099Ω, 0.001Ω; ±(1% + 0.01Ω)

0.10- 0.99Ω, 0.01Ω; ±(1% + 0.01Ω)

1.0- 49.9Ω, 0.1Ω; ±(1% + 0.1Ω)

50.0- 99.5Ω, 0.5Ω; ±(1.5% + 0.5Ω)

100-199Ω, 1Ω; ±(2% + 1Ω)

200- 395Ω, 5Ω; ±(5% + 1Ω)

400- 590Ω, 10Ω; ±(10% + 10Ω)

600- 880Ω,20Ω; ±(20% + 20Ω)

900- 0.1200Ω, 30Ω; ±(25% + 30Ω)

Standard Accessories: Carrying Case; Standard Loop Resistance of 5.1Ω; Instruction Manual, Calibration Certificate
