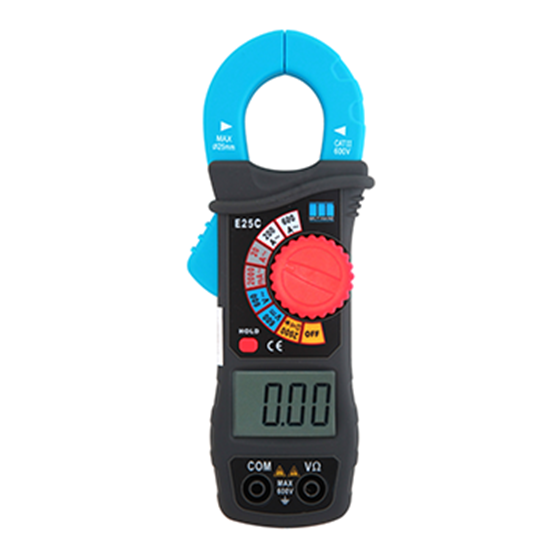

MOTWANE E25C Clamp Meter (AC 600A)

Manufacturer: MOTWANE

Model:E25C

Origin: India

Warranty: 12 months

3 ½ LCD display, max reading "1999" with LOBAT & Polarity Indication.

Max jaw opening: 25mm

Measurement principle: double integration A/D transform.

Range select: manual

Measurement speed: 2.5~3 times/sec

Polarity display: it displays "-" as inputting negative polarity.

Overloading display: only 1 appears on the display screen.

Data hold function: “ H ” is shown on the top of LCD.

Low battery display: it displays on the left of LCD.

Power supply: 2×1.5V

Dimensions: 170×65×27 mm

Weight: approx. 140g (without battery)

Operating Temperature: 5°C to 45°C

Storage Temperature : -10°C to 50°C

AC curent: 2000mA, 1mA, ±(3.0%+5);

20A, 10mA, ±(2.5%+5);

200A, 0.1A, ±(2.5%+5)

600A, 1A, ±(3.0%+5)

AC Voltage: 600V, 1V, ±(2.0%+5)

DC Voltage: 600V, 1V, ±(1.2%+2)

Resistance : 0-2000Ω, 1Ω, ±(2.0%+5)

Diode Test: Yes

continuity Buzzer: Approx <40 Ω

Accessories: User's manual; Test lead; Battery 2 x 1.5V
